School gluestick alternative?

Share your phonograph repair & restoration techniques here
osero1ww
Victor Jr
Posts: 32
Joined: Sat Jan 20, 2024 6:12 am
Personal Text: Never have I experienced happiness greater than fixing my gramophone by myself.
Location: Arabia

School gluestick alternative?

Post by osero1ww »

Hello everyone, I was looking over the Goldring soundbox on my Decca machine and took a look at it. I was already going to buy another soundbox for the machine and I was wondering if glue from a school gluestick might make for an okay substitute to beeswax. (I have really no idea where to find it in my country aswell, and I was stuck with candle wax).
I stuffed a bit of it around the needlebar connection to the diaphragm, and played a record.

Link to video: (it's an unlisted video link)
https://youtu.be/nM6PJpaB7bo?si=cga3lPSdDv3Yii7f

My phone microphone is not the best, and the record is a bit worn.
What do you guys think?
Attachments

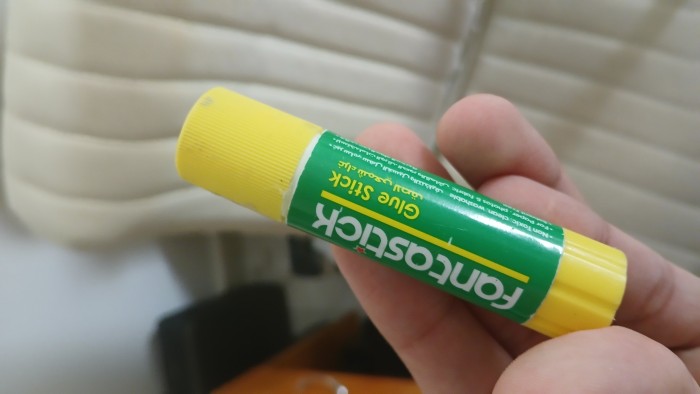

The gluestick in question.
The gluestick in question.

User avatar
Orchorsol
Victor IV
Posts: 1640
Joined: Wed Feb 22, 2012 9:03 am
Location: Dover, UK
Contact:

Re: School gluestick alternative?

Post by Orchorsol »

I have to say, your diaphragm doesn't look in great shape, and that looks like a huge amount of Prittstik (that's what we call it in the UK) - and I don't know how a solid mass of that stuff would dry, so who knows whether it will work. But, it sounds OK! Hope you can find a better soundbox for your Decca at some point.

I find when using beeswax that a ball of diameter around 2 or 3mm is enough when melted. I think I remember reading that back in the day, a blend of beeswax and sealing wax was used. Some people here use a small amount of PVA (white wood glue) instead of beeswax.
BCN thorn needles made to the original 1920s specifications: http://www.burmesecolourneedles.com

Youtube channel: https://www.youtube.com/channel/UCe4DNb ... TPE-zTAJGg?

User avatar
Marco Gilardetti
Victor IV
Posts: 1419
Joined: Thu Feb 24, 2011 3:19 am
Personal Text: F. Depero, "Grammofono", 1923.
Location: Italy
Contact:

Re: School gluestick alternative?

Post by Marco Gilardetti »

Orchorsol wrote: Tue Jun 11, 2024 5:04 am I have to say, your diaphragm doesn't look in great shape, and that looks like a huge amount of Prittstik (that's what we call it in the UK)
I have to agree in full with the above. I also don't get exactly why one would wish to substitute wax with glue. Soundboxes have to be rehauled periodically, and the wax drop is easily removed by melting it with heat. I have occasionally dealt with soundboxes that were glued, and indeed I could do a decent work by getting rid of the glue by soaking it with nitro solvent, but I definitely wouldn't recommend glueing anything on a soundbox.

osero1ww
Victor Jr
Posts: 32
Joined: Sat Jan 20, 2024 6:12 am
Personal Text: Never have I experienced happiness greater than fixing my gramophone by myself.
Location: Arabia

Re: School gluestick alternative?

Post by osero1ww »

Orchorsol wrote: Tue Jun 11, 2024 5:04 am I have to say, your diaphragm doesn't look in great shape, and that looks like a huge amount of Prittstik (that's what we call it in the UK) - and I don't know how a solid mass of that stuff would dry, so who knows whether it will work. But, it sounds OK! Hope you can find a better soundbox for your Decca at some point.

I find when using beeswax that a ball of diameter around 2 or 3mm is enough when melted. I think I remember reading that back in the day, a blend of beeswax and sealing wax was used. Some people here use a small amount of PVA (white wood glue) instead of beeswax.
Yeah the original diaphragm was holed in a few places and I fashioned one out of a food container. I didn't know it had to be corrugated aluminum to give better sound reproduction though as mrrgstuff pointed out when I first posted about my machine. The soundbox anyways was beyond repair for my amateur hands. Yeah I used a huge amount because a small amount never got to the places it needed.

osero1ww
Victor Jr
Posts: 32
Joined: Sat Jan 20, 2024 6:12 am
Personal Text: Never have I experienced happiness greater than fixing my gramophone by myself.
Location: Arabia

Re: School gluestick alternative?

Post by osero1ww »

Marco Gilardetti wrote: Tue Jun 11, 2024 5:56 am
Orchorsol wrote: Tue Jun 11, 2024 5:04 am I have to say, your diaphragm doesn't look in great shape, and that looks like a huge amount of Prittstik (that's what we call it in the UK)
I have to agree in full with the above. I also don't get exactly why one would wish to substitute wax with glue. Soundboxes have to be rehauled periodically, and the wax drop is easily removed by melting it with heat. I have occasionally dealt with soundboxes that were glued, and indeed I could do a decent work by getting rid of the glue by soaking it with nitro solvent, but I definitely wouldn't recommend glueing anything on a soundbox.
You guys are probably right, though this was like a last resort because I didn't find anything that would work with it. But yeah, I'm never doing this again. Thanks for replying you two.

User avatar
epigramophone
Victor Monarch Special
Posts: 5292
Joined: Mon Oct 24, 2011 1:21 pm
Personal Text: An analogue relic trapped in a digital world.
Location: The Somerset Levels, UK.

Re: School gluestick alternative?

Post by epigramophone »

I am one of the people Orchorsol mentions who uses PVA to seal the joint between the stylus bar and the diaphragm.
Small containers of PVA usually have a fine nozzle, making it easier to precisely apply a single drop than with wax. It goes on white, dries colourless and remains flexible. If it ever needs to be removed, immersion in warm water is all that is required.

User avatar
Curt A
Victor Monarch Special
Posts: 6540
Joined: Fri Jul 09, 2010 8:32 pm
Personal Text: Needle Tins are Addictive
Location: Belmont, North Carolina

Re: School gluestick alternative?

Post by Curt A »

A tiny bit of modeling clay would work, it only hardens after baking...

Epi's idea is probably best...
"The phonograph† is not of any commercial value."
Thomas Alva Edison - Comment to his assistant, Samuel Insull.

"No one needs a Victrola XX, a Perfected Graphophone Type G, or whatever you call those noisy things."
My Wife

User avatar
AudioFeline
Victor II
Posts: 216
Joined: Thu Jan 09, 2020 10:25 pm
Personal Text: Sounds good to me...
Location: Melbourne, Australia.

Re: School gluestick alternative?

Post by AudioFeline »

I enjoyed the disk in the video!

I found beeswax in my hardware store in the section with the furniture polishes.

If you have used a lot of the gluestick you will probably find it shrinks in time and will become harder (the evaporation of the moisture). You will probably find that it can be removed by dissolving in water.

Going on a tangent, from using gluesticks as a paper adhesive (intended purpose), I've noticed great variation of quality. Cheap gluesticks are good for a short period (eg. a school project) but don't provide good adhesion in the longer term. I've found the Bostik brand the best quality. And when using it with paper, put it on both surfaces first.

osero1ww
Victor Jr
Posts: 32
Joined: Sat Jan 20, 2024 6:12 am
Personal Text: Never have I experienced happiness greater than fixing my gramophone by myself.
Location: Arabia

Re: School gluestick alternative?

Post by osero1ww »

epigramophone wrote: Tue Jun 11, 2024 6:54 am I am one of the people Orchorsol mentions who uses PVA to seal the joint between the stylus bar and the diaphragm.
Small containers of PVA usually have a fine nozzle, making it easier to precisely apply a single drop than with wax. It goes on white, dries colourless and remains flexible. If it ever needs to be removed, immersion in warm water is all that is required.
That's a nice piece of information to know. When I have the time and resources to expand this will help a lot with judging certain hardware as redeemable or not. The advantages of using PVA were not known to me, seems like I have a nice alternative to beeswax. This is way more suitable for the hot environment I live in.

osero1ww
Victor Jr
Posts: 32
Joined: Sat Jan 20, 2024 6:12 am
Personal Text: Never have I experienced happiness greater than fixing my gramophone by myself.
Location: Arabia

Re: School gluestick alternative?

Post by osero1ww »

Curt A wrote: Tue Jun 11, 2024 9:28 am A tiny bit of modeling clay would work, it only hardens after baking...

Epi's idea is probably best...
I tried once looking for blutack that is usually used for sticking paper to walls. But it didn't really work for it. Never tried modelling clay, but PVA seems a more suitable solution.
