Edison Home D with mysterious gear
Posted: Tue Nov 02, 2021 10:08 pm
by bartongreg8238
I have an Edison Home model D with a mysterious gear on the 2/4 speed select pulley. I can’t seem to find a use for it as the machine doesn’t appear to have anything connected to it. What is it? Something custom installed by a previous owner?

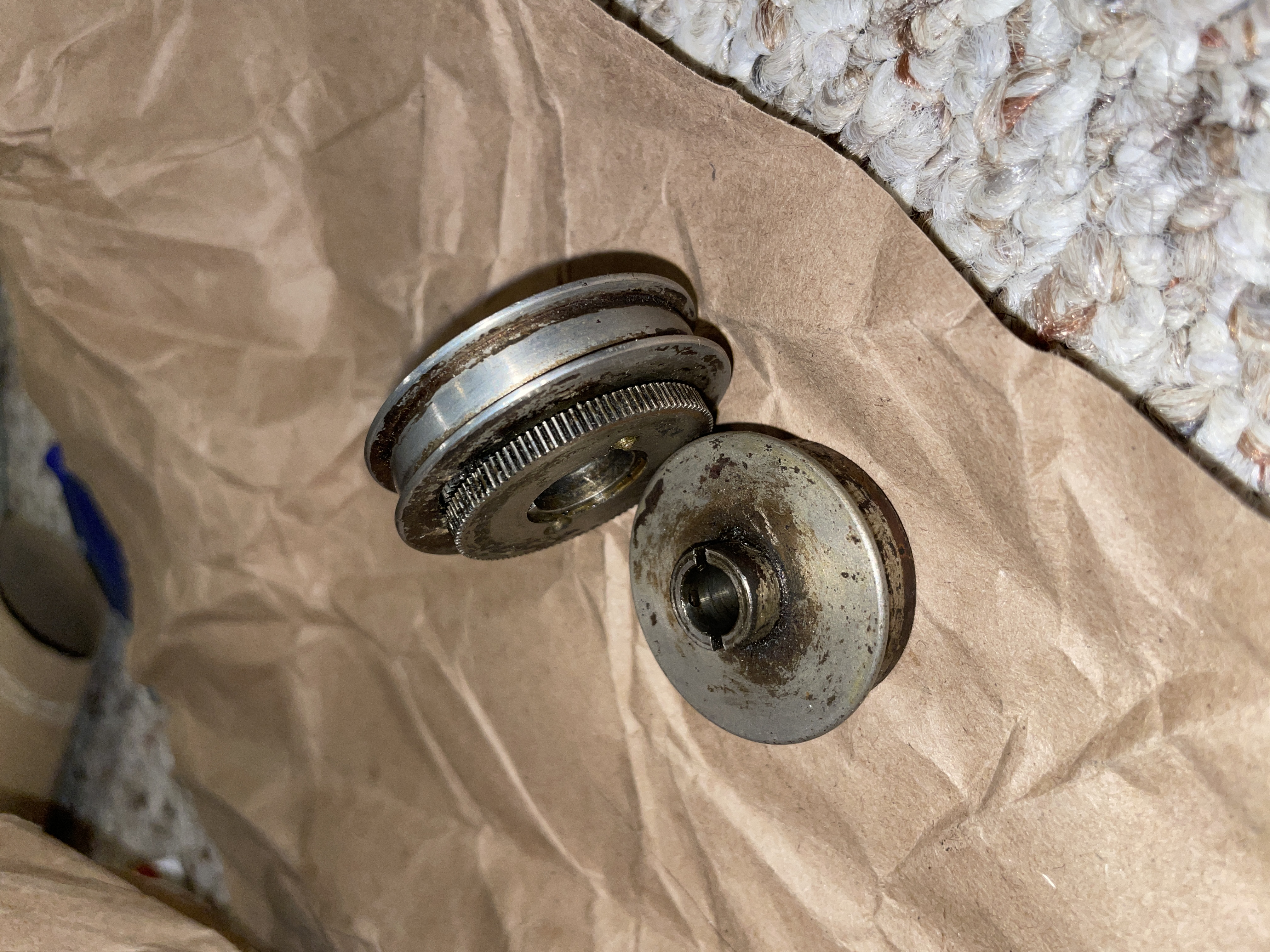

- Edison home D pulley.
- Edison home D mystery gear
Re: Edison Home D with mysterious gear
Posted: Tue Nov 02, 2021 10:32 pm
by Phonolair
This would have been part of a repeater on your Home. Obviously the repeater must be gone now. There are probably two empty screw holes on the top bedplate casting where it would have been mounted.
Larry Crandell
Re: Edison Home D with mysterious gear
Posted: Wed Nov 03, 2021 4:06 pm
by Dave D
If you don't have the two holes like Larry predicted, it is because your repeater was an add on and not factory installed.
Dave D
Re: Edison Home D with mysterious gear
Posted: Wed Nov 03, 2021 5:54 pm
by bartongreg8238
Nice! I do see two holes on the top…
Thank you!
