HMV 32 Motor - paper motor manual
Posted: Fri Aug 11, 2023 4:14 pm
by kropton
Hello,
does anyone have a scan or good quality photo of the 32 motor internal manual?
My manual is in terrible condition.
Re: HMV 32 Motor - paper motor manual
Posted: Fri Aug 18, 2023 9:47 pm
by AZ*

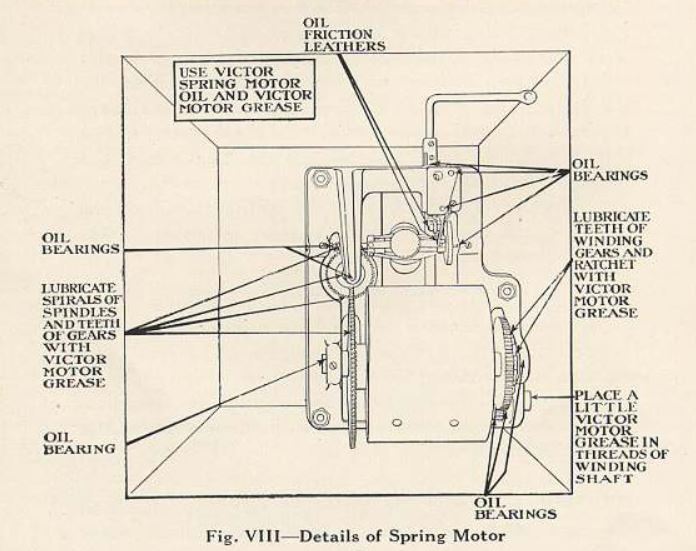

I know this isn't EXACTLY what you wanted, but it should suffice until you can find the HMV motor sheet you you asked for. This is from a Victrola XI instruction manual. The motor is basically the same. Its parts are interchangeable with the 32 motor.
- Victrola XI motor.JPG (66.66 KiB) Viewed 379 times
Re: HMV 32 Motor - paper motor manual
Posted: Sat Aug 19, 2023 12:17 am
by chunnybh
Here are slightly better images of the #34 and #32 motors. Looking closely, the 32 labels are different.
Re: HMV 32 Motor - paper motor manual
Posted: Sat Aug 19, 2023 2:04 am
by AZ*
I checked the underside of the motor board on a couple of my HMV 2 spring motor machines. The sheet on my HMV 162 was worse than the OP's. The one on my HMV 163 was a bit better, so here it is.
