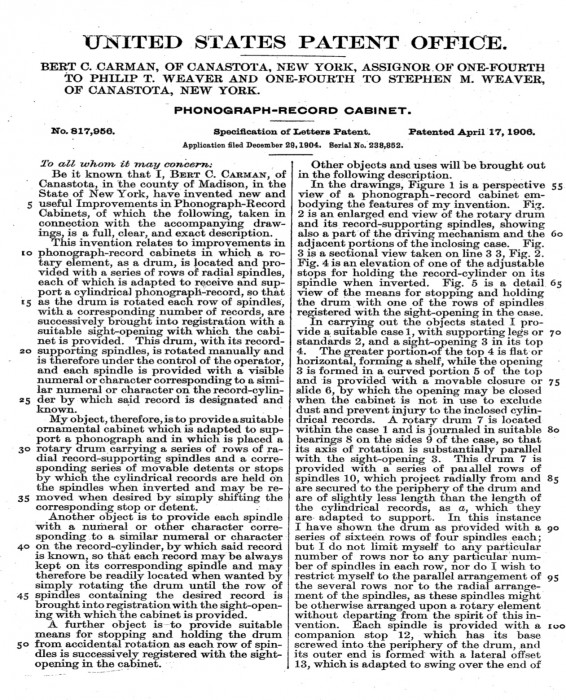

817956 Ferris’s Wheel Cylinder Cabinet

Post by JohnM »

What holds the cylinders in place?
Attachments
Last edited by JohnM on Tue Feb 22, 2022 3:54 am, edited 1 time in total.
"All of us have a place in history. Mine is clouds." Richard Brautigan

User avatar
Lucius1958
Victor Monarch
Posts: 4021
Joined: Tue Dec 14, 2010 12:17 am
Location: Where there's "hamburger ALL OVER the highway"...

Re: Ferris’s Wheel Cylinder Cabinet

Post by Lucius1958 »

JohnM wrote: Tue Feb 15, 2022 9:05 am What holds the cylinders in place?

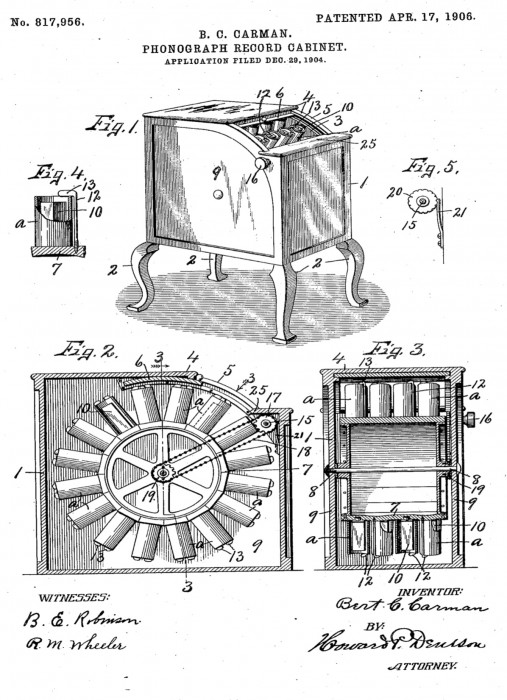

The "stop or detent" mentioned in the description, and shown in the upper left of the drawing (Fig.4).

- Bill

tomb
Victor IV
Posts: 1405
Joined: Sat Oct 24, 2015 10:46 pm
Location: riverside calif

Re: Ferris’s Wheel Cylinder Cabinet

Post by tomb »

Does any one know if this was a patent only or it went into production. ?? Neat cylinder holder.

tomb
Victor IV
Posts: 1405
Joined: Sat Oct 24, 2015 10:46 pm
Location: riverside calif

Re: Ferris’s Wheel Cylinder Cabinet

Post by tomb »

This was a duplicate.
