Found: Field coil power connector for 1928 Electrola

Post by broso252 »

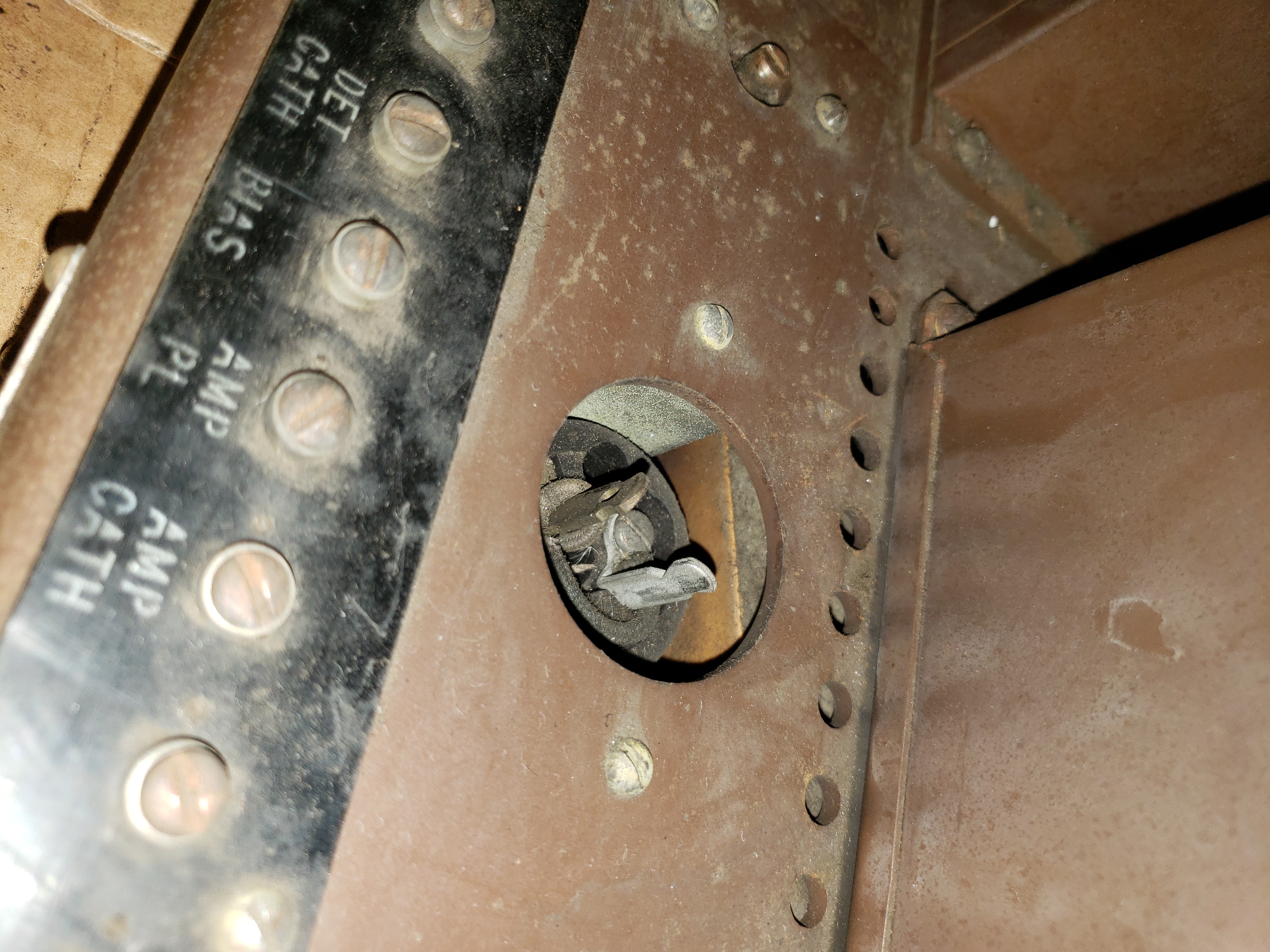

I'm looking for a field coil connector for a 1928 9-18 radio Electrola. I believe that this same plug was used on all the victor sets that used a type 50 tube amplifier. I have included a picture of the male end of this plug on the amplifier. The other end is supposed to connected to the field coil leads of the speaker. Unfortunately it appears that mine was cut off long ago.
this is the last part that I think I need to complete the restoration of my 9-18 other than the wire to make a new wiring harness.
Thanks
Attachments
Last edited by broso252 on Sat Dec 03, 2022 1:25 am, edited 1 time in total.

pallophotophone
Victor II
Posts: 364
Joined: Tue Aug 14, 2018 7:35 pm
Location: Syracuse N.Y.

Re: Wanted: Field coil power connector for 1928 Electrola

Post by pallophotophone »

I recall that at one time the female end your looking for also came as a standard 2 prong configuration that also had one right angle socket immediately adjacent to one of the standard pins. Might be easier to find. And it would still be technically correct and of the correct vintage.
