HMV 32 Motor - paper motor manual

[kropton]

Hello,
does anyone have a scan or good quality photo of the 32 motor internal manual?

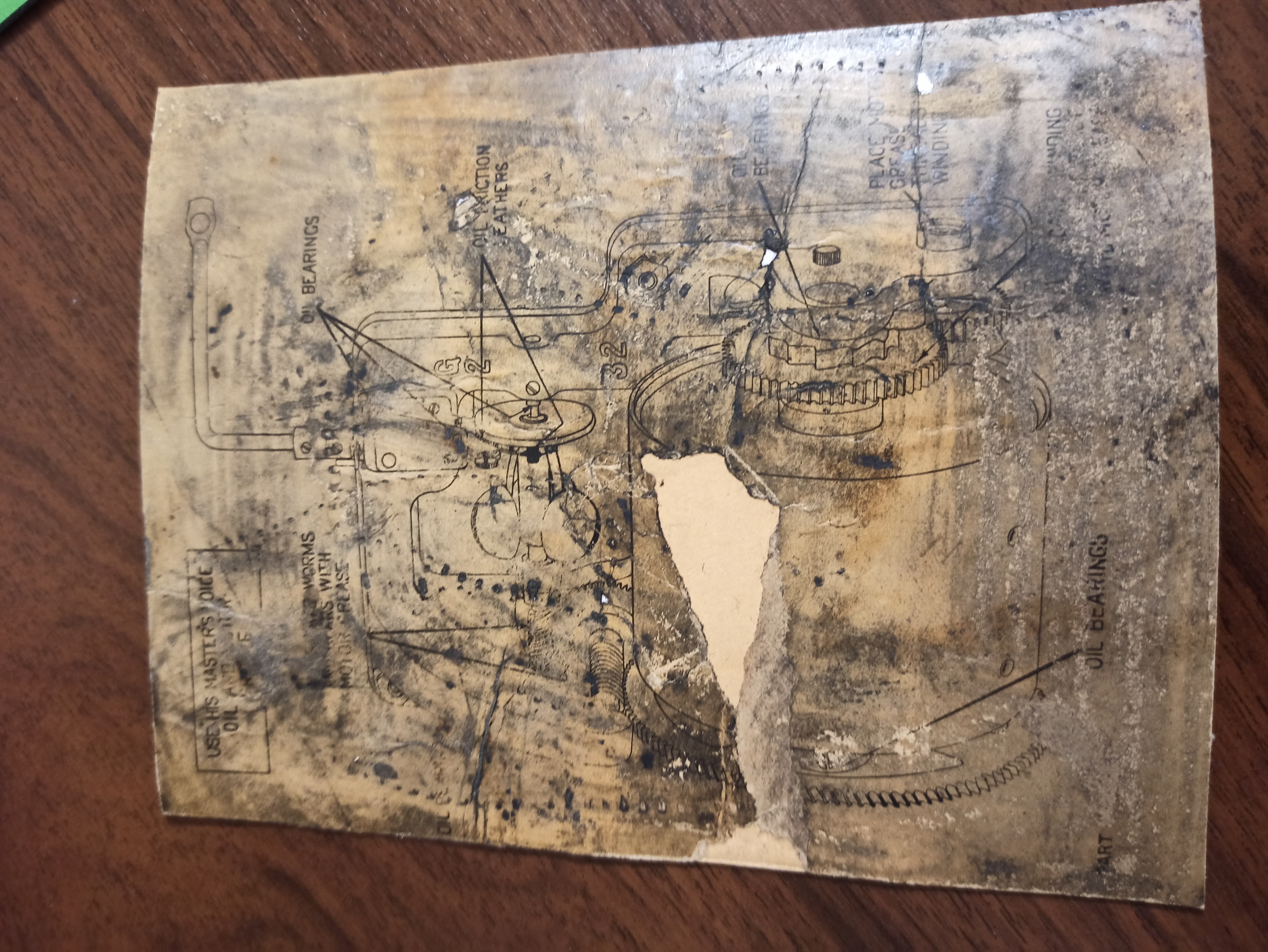

My manual is in terrible condition.

[AZ*]

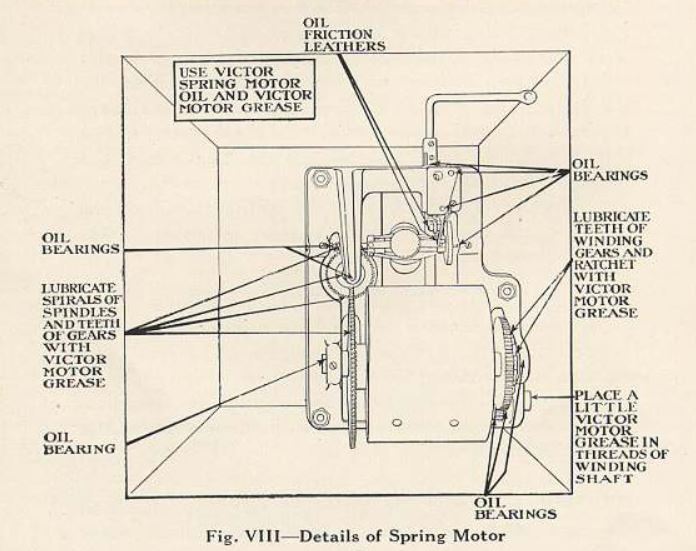

I know this isn't EXACTLY what you wanted, but it should suffice until you can find the HMV motor sheet you you asked for. This is from a Victrola XI instruction manual. The motor is basically the same. Its parts are interchangeable with the 32 motor.

Victrola XI motor.JPG (66.66 KiB) Viewed 372 times

[chunnybh]

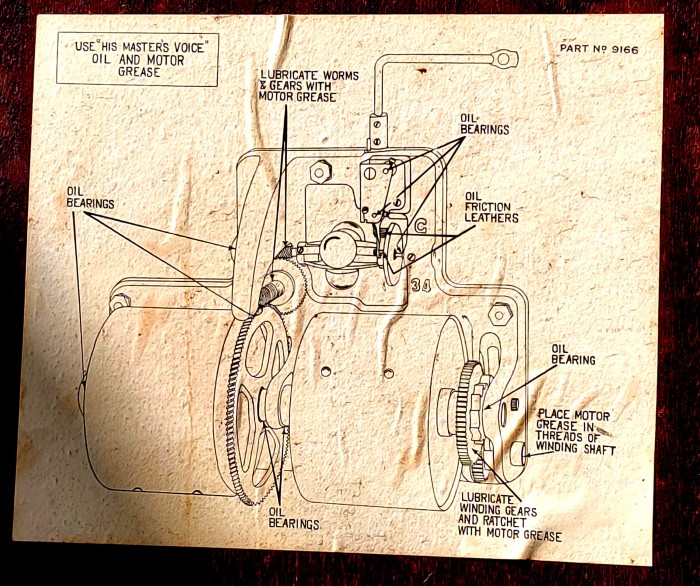

Here are slightly better images of the #34 and #32 motors. Looking closely, the 32 labels are different.

[AZ*]

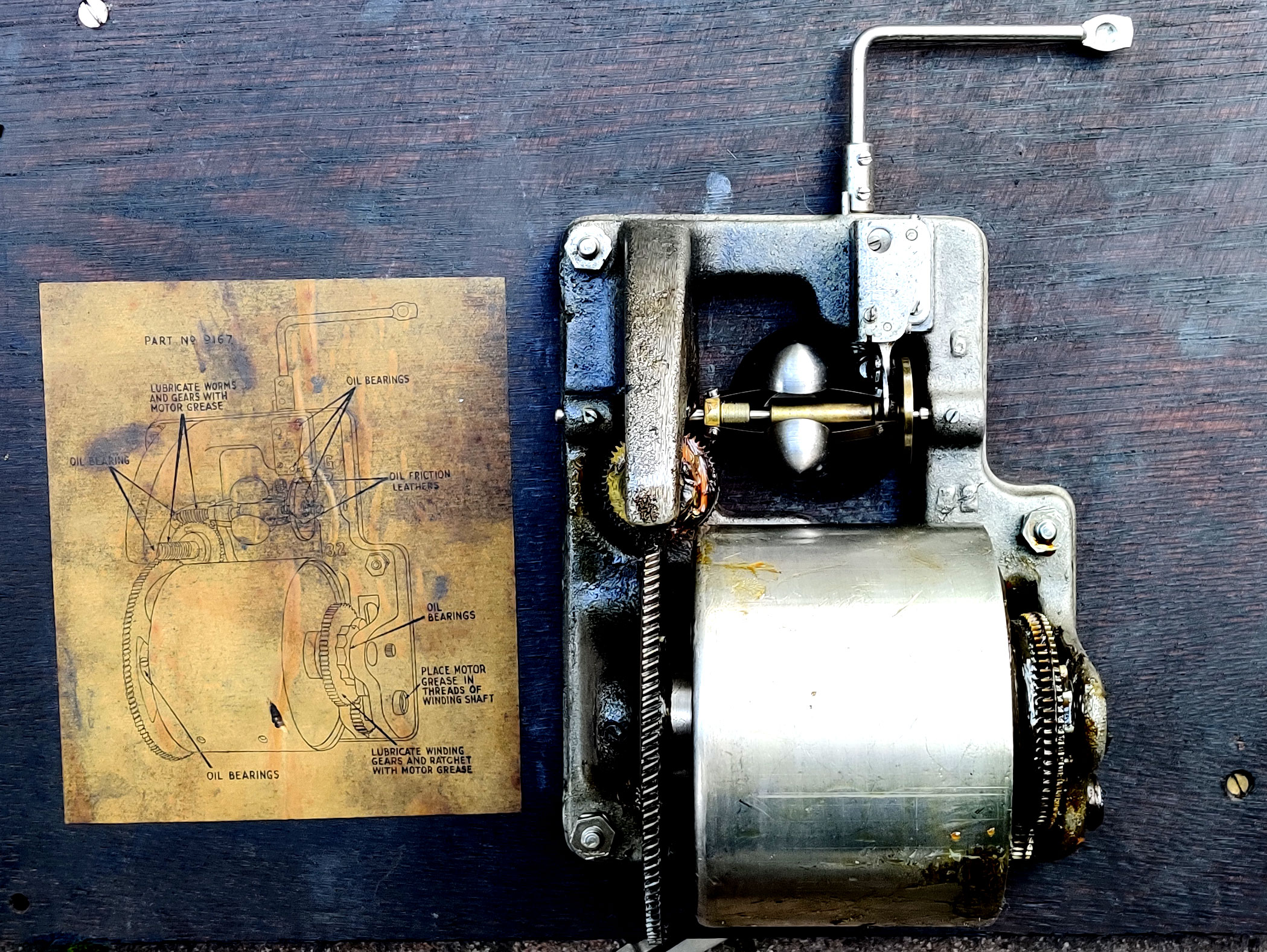

I checked the underside of the motor board on a couple of my HMV 2 spring motor machines. The sheet on my HMV 162 was worse than the OP's. The one on my HMV 163 was a bit better, so here it is.
