Edison Triumph belt

Post by mjbarnes »

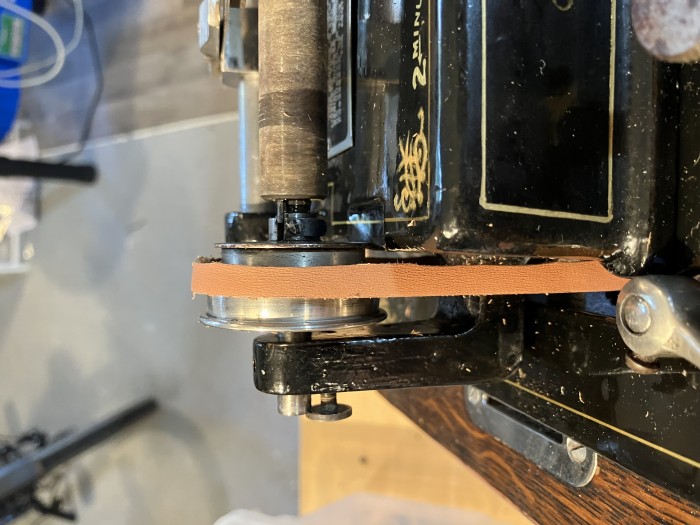

What causes a belt to ride up on the sides of the pulleys? I have enough material to make a new belt and this time will trim the width with a ruler before installing.
Attachments
Top
User avatar
TinfoilPhono
Victor V
Posts: 2025
Joined: Thu Jan 08, 2009 8:48 pm
Location: SF Bay Area, Calif.

Re: Edison Triumph belt

Post by TinfoilPhono »

Looks like an alignment issue. The mandrel and drive shaft are pushed far to the left. You'll need to adjust the bearings at each end to move it to the right so that the pulley is lined up with the belt pulley.
Top
kendphono
Victor II
Posts: 251
Joined: Mon Jan 06, 2014 6:58 pm

Re: Edison Triumph belt

Post by kendphono »

If the belt material is too thick, it woll also tend to rise up on the pulley rim. but, as mentioned you must make sure the upper and liwer pulleys are aligned. Another thing to check is the idler wheel. sometimes the arm holding the wheel is bent and the wheel does not ride flat on the belt. This can also push the belt over.

Ken Danckaert
Top
mjbarnes
Victor I
Posts: 172
Joined: Fri Jul 11, 2014 10:34 am

Re: Edison Triumph belt

Post by mjbarnes »

I ordered "Columbia" belt material by accident instead of Edison, so it is too wide. I have practised making two belts with it today and am going to do a final trim down the side to try to narrow it.

Triumphs, strangely, do not have an idler pulley, but instead have one of the three motor mounts adjustable.

Machine is underpowered and won't play a cylinder! I am trying to find the cause -- that too-fat belt may be stealing some of the energy, as well as a feed screw that hadn't been oiled in 60 years. Any suggestions where to look?
Top
User avatar
Roaring20s
Victor V
Posts: 2781
Joined: Wed Jun 13, 2012 1:55 am
Personal Text: Those who were seen dancing were thought insane by those who could not hear the music. Nietzsche
Location: Tucson, AZ

Re: Edison Triumph belt

Post by Roaring20s »

TinfoilPhono wrote: Sun Oct 27, 2024 2:20 pm Looks like an alignment issue. The mandrel and drive shaft are pushed far to the left. You'll need to adjust the bearings at each end to move it to the right so that the pulley is lined up with the belt pulley.
Yes, this seems to be the adjustment to make. ;)

James.
Top
User avatar
ChesterCheetah18
Victor II
Posts: 419
Joined: Mon Jun 22, 2020 7:16 pm

Re: Edison Triumph belt

Post by ChesterCheetah18 »

The mandrel shaft pulley clearly is not in alignment with the lower pulley. The feedscrew is also very dry. Addressing those will likely fix the problems.

Steve
Top
Online
JerryVan
Victor Monarch Special
Posts: 6572
Joined: Mon Aug 24, 2009 3:08 pm
Location: Southeast MI

Re: Edison Triumph belt

Post by JerryVan »

Yes, shifting the mandrel shaft to the right will help some, but also, the top works assembly also appears to be located too far to the left as well. See how close the belt comes to the base of the top works casting. Maybe the lower pulley needs adjustment as well.
Top
