Does anyone know if a spring barrel from a SAAL DD motor is interchangeable with a SAAL EE motor? I do know that the SAAL DD has more record playing capability per winding than the EE from this ad in Talking Machine World.
Thank you,
Ken
SAAL Motor Question
-
Polyphone
- Victor II
- Posts: 348
- Joined: Mon Apr 18, 2016 6:40 pm
- Personal Text: There is a fine line between clever and stupid
SAAL Motor Question
- Attachments
-
- SAAL Motors.pdf
- (137.29 KiB) Downloaded 54 times
-
gramophoneshane
- Victor VI
- Posts: 3463
- Joined: Wed Jan 07, 2009 3:21 pm
Re: SAAL Motor Question
I don't know much about these motors. I have the third one pictured but can't quite make out the model number.
This is only a guess, but I would think different playing time from the same number of springs, means different spring size and probably barrels.

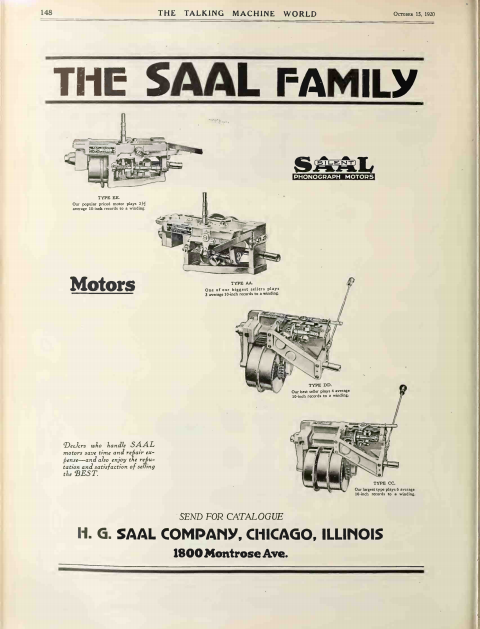

I've copied the ad and posted below to save having to download it
This is only a guess, but I would think different playing time from the same number of springs, means different spring size and probably barrels.
I've copied the ad and posted below to save having to download it
- Attachments
-
- Screenshot_20210708-084248.png (186.94 KiB) Viewed 935 times
-
Polyphone
- Victor II
- Posts: 348
- Joined: Mon Apr 18, 2016 6:40 pm
- Personal Text: There is a fine line between clever and stupid
Re: SAAL Motor Question
Thanks you for sharing this....Best, Ken
-
Polyphone
- Victor II
- Posts: 348
- Joined: Mon Apr 18, 2016 6:40 pm
- Personal Text: There is a fine line between clever and stupid
Re: SAAL Motor Question
FYI: The spring barrels from a SAAL DD motor is interchangeable with a SAAL EE motor.
-
davidwand
- Victor Jr
- Posts: 1
- Joined: Sun Dec 22, 2024 5:56 am
- Personal Text: Crank it up
Re: SAAL Motor Question
I am planning to replace a Saal DD MOTOR - main Spring assembly and just put in on my Saal EE Motor because my Saal EE first spring snapped. Any suggestions or is this not feasible?
-
JerryVan
- Victor Monarch Special
- Posts: 6417
- Joined: Mon Aug 24, 2009 3:08 pm
- Location: Southeast MI
Re: SAAL Motor Question
Don't the postings above give you your answer?davidwand wrote: Sat Jun 21, 2025 4:12 pm I am planning to replace a Saal DD MOTOR - main Spring assembly and just put in on my Saal EE Motor because my Saal EE first spring snapped. Any suggestions or is this not feasible?
