Silvertone Help
-
atopolosky
- Victor Jr
- Posts: 49
- Joined: Tue Sep 08, 2009 3:11 pm
Silvertone Help

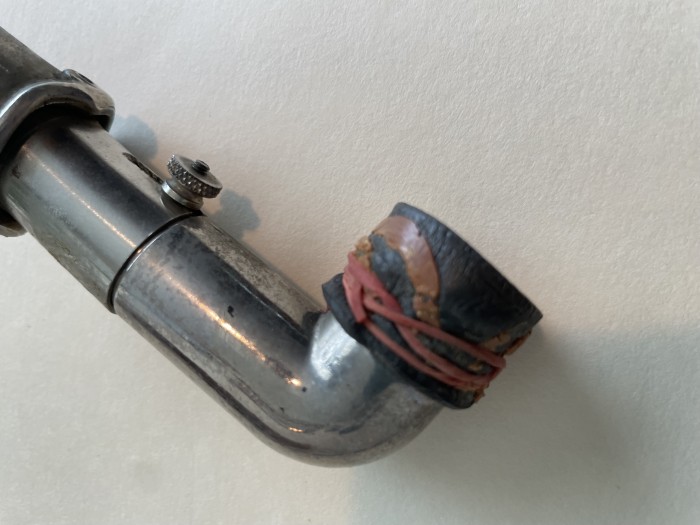

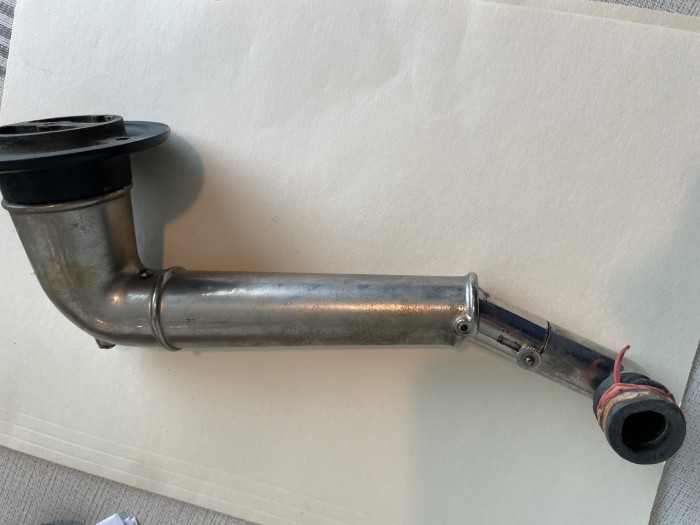

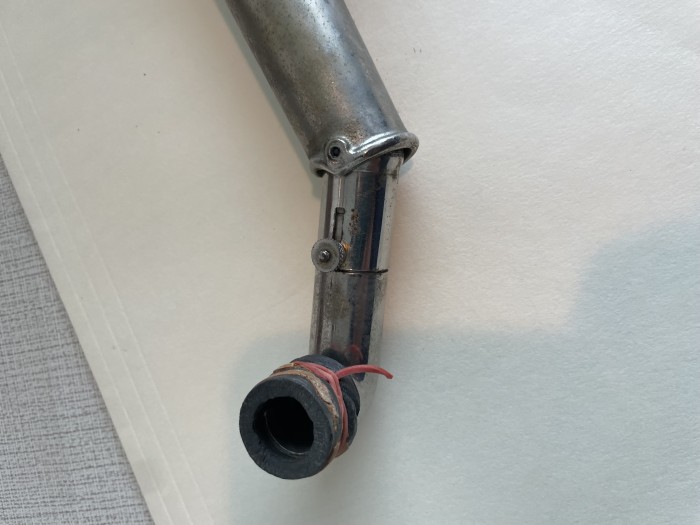

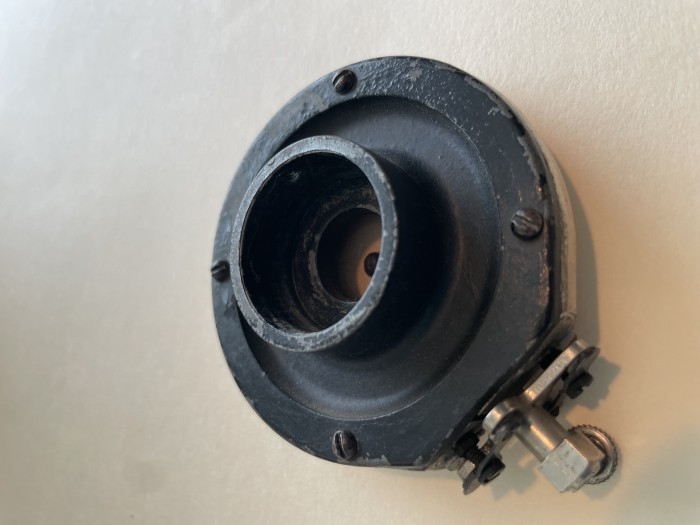

Trying to help a neighbor with his Silvertone upright. See the pics - the reproducer has a crack and seems to be missing a way to connect it to the tone arm. Any thoughts? Allan
- Attachments
-
-
-
-
-
-
Curt A
- Victor Monarch Special
- Posts: 6830
- Joined: Fri Jul 09, 2010 8:32 pm
- Personal Text: Needle Tins are Addictive
- Location: Belmont, North Carolina
Re: Silvertone Help
Pot metal deterioration... Search for a better example.
"The phonograph is not of any commercial value."
Thomas Alva Edison - Comment to his assistant, Samuel Insull.
"No one needs a Victrola XX, a Perfected Graphophone Type G, or whatever you call those noisy things."
My Wife
Thomas Alva Edison - Comment to his assistant, Samuel Insull.
"No one needs a Victrola XX, a Perfected Graphophone Type G, or whatever you call those noisy things."
My Wife
-
JerryVan
- Victor Monarch Special
- Posts: 6464
- Joined: Mon Aug 24, 2009 3:08 pm
- Location: Southeast MI
Re: Silvertone Help
Search eBay for "Silvertone reproducer". They turn up fairly frequently for not much money. This one is done for...
-
atopolosky
- Victor Jr
- Posts: 49
- Joined: Tue Sep 08, 2009 3:11 pm
Re: Silvertone Help
Can y'all please check your parts boxes for a Silvertone reproducer. I agree, this one is toast.
-
Inigo
- Victor Monarch
- Posts: 4469
- Joined: Mon Dec 18, 2017 1:51 am
- Personal Text: Keep'em well oiled
- Location: Madrid, Spain
- Contact:
Re: Silvertone Help
If the back is still solid and fairly flat, i.e., not warped, it can be repaired and used with good results. The front ring has split because it is screwed to the back, which is massive, and has swelled, has augmented dimensions, and has forced the front ring to break.
The difficulty rests on stabilizing the front ring in its new slightly larger shape, sealing the crack, and freeing it from the back so it can be disassembled and reassembled with ease. The crack can be refilled with araldit or any of those liquid metal two-component mixtures so the ring stays in this larger size. of course, it will need new fresh gaskets of the right size, and presumably the mics diaphragm will continue being usable if it's on good shape, because the change in diameter is very small...
The difficulty rests on stabilizing the front ring in its new slightly larger shape, sealing the crack, and freeing it from the back so it can be disassembled and reassembled with ease. The crack can be refilled with araldit or any of those liquid metal two-component mixtures so the ring stays in this larger size. of course, it will need new fresh gaskets of the right size, and presumably the mics diaphragm will continue being usable if it's on good shape, because the change in diameter is very small...
Inigo
-
erunltd
- Victor II
- Posts: 341
- Joined: Wed Jan 21, 2015 8:59 pm
Re: Silvertone Help
Allan . . .
What you are looking for may be in Lansing Michigan.
Check this link:
https://www.facebook.com/marketplace/it ... =top_picks
Harry
Hope all is well with you, Nancy and the family
What you are looking for may be in Lansing Michigan.
Check this link:
https://www.facebook.com/marketplace/it ... =top_picks
Harry
Hope all is well with you, Nancy and the family
-
atopolosky
- Victor Jr
- Posts: 49
- Joined: Tue Sep 08, 2009 3:11 pm
Re: Silvertone Help
Sunday afternoon - what a great time to look through your spare parts for a Silvertone reproducer! Anything?
-
JerryVan
- Victor Monarch Special
- Posts: 6464
- Joined: Mon Aug 24, 2009 3:08 pm
- Location: Southeast MI
Re: Silvertone Help
As I suggested for you to do... https://www.ebay.com/itm/205603194572?_ ... R_bKgYH-ZQJerryVan wrote: Wed Jun 25, 2025 3:01 pm Search eBay for "Silvertone reproducer". They turn up fairly frequently for not much money. This one is done for...
