Proper Crane for my Horn

[HROSEN]

I don’t understand how having the upper part of the the crane will help me. Don’t I need the lower part also?

Howard

[phonogfp]

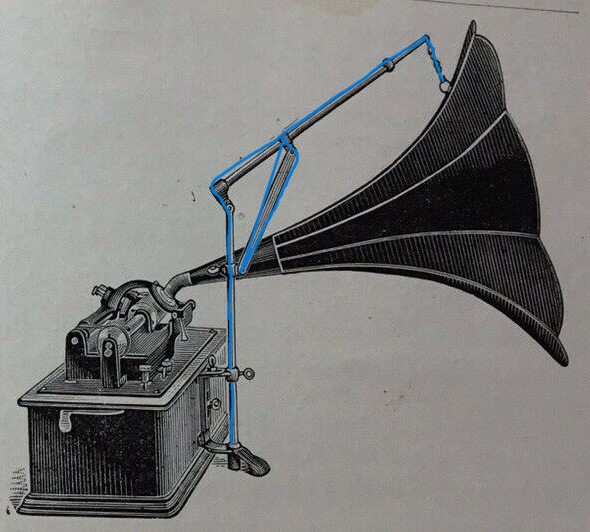

Sorry - I'm probably guilty of using imprecise "collector's vernacular" to describe what you need. Here's what I meant by "upper part" as opposed to the rest of the crane:

H&S crane.jpg (82.17 KiB) Viewed 1192 times

You need the part marked in blue.

George P.

[HROSEN]

George:

You are 100% correct! Tim Has the exact crane And He is shipping it out to me. After I get it, I still have to decide which horn to purchase. You have been a great help to me!! Thank you!

Howard

[phonogfp]

Glad to help. As I wrote earlier, a show will be your best and most cost-effective avenue to obtaining a horn.

George P.

[HROSEN]

Hi! I got the crane from Tim. I’ll send you some pictures of a horn that I already have. ImI’d like to have your opinion if you think it would work. With some kind of a 45° adapter possibly.

[HROSEN]

George:

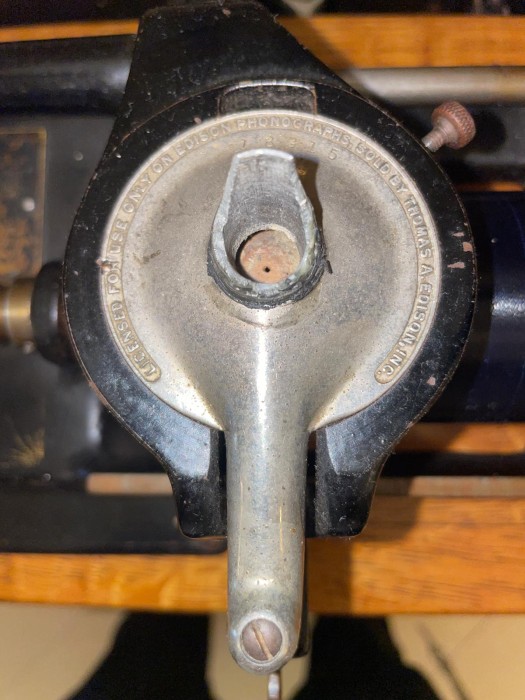

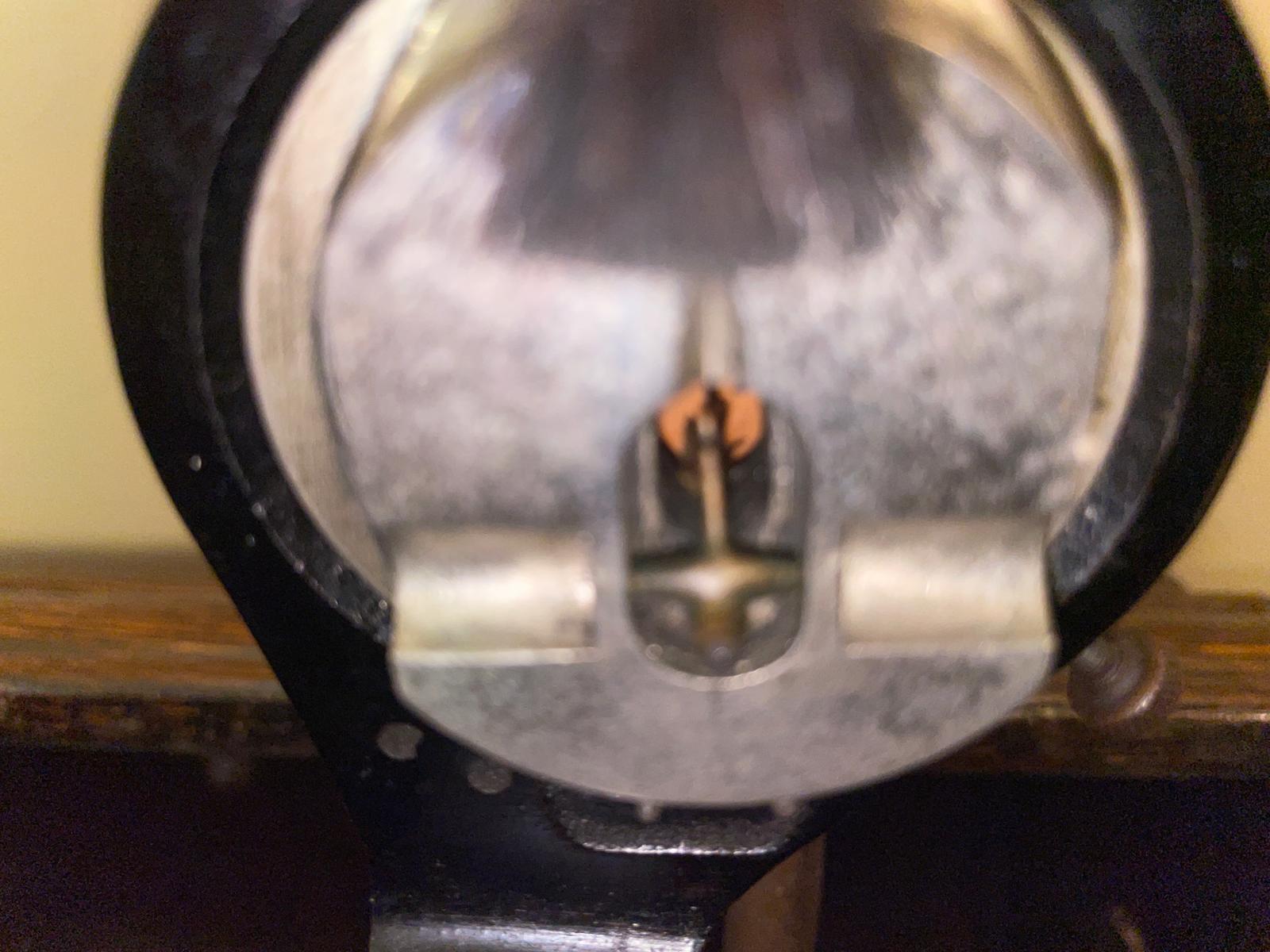

Hello again! Thank you for your great help in the past. We just visited the Thomas Edison museum in New Jersey and I was impressed how the sound was loud and clear. I have never gotten any sound from my system. I've attached some pictures of the reproducer. I assume I need to get a new one. Can you please direct me?

Thanks

Howard

[phonogfp]

Howard,

I'm sorry to learn you're having trouble with your Diamond B Reproducer. It's impossible to be sure from the images you posted, but it appears the linkage may be disconnected from the diaphragm.

I'd recommend sending it to Wyatt Markus: [email protected].

I've had serious difficulty logging onto this forum for a couple of weeks. If you need more feedback from me, I suggest using the APS Forum: https://forum.antiquephono.org/

Best of luck!
George P.

[JohnM]

George!! Thank you so much for you time!!! It really is appreciated! I sent an email to one of the vendors asking for a crave. I have been speaking with Tim Fabrizio and he recommended drilling new mounts which I don’t want to do.

It’s not like it’s a rare model. I would install a cygnet bracket and crane since the machine has already been modified with a horizontal carriage, which is VERY appropriate for a cygnet. It won’t devalue the machine one cent. Horizontal carriages with straight crane-mounted horns look horsey imho, and as George P pointed-out, a cygnet saves room and allows much easier access to the machine when playing it.
