What Size Springs for Edison Gem Model B Winding Crank?

Post by Couch Potato »

I have an Edison Gem Model B with a 5/16th diameter crank shaft for winding the motor. It is missing the both the conical compression spring on one end and the regular cylindrical compression spring on the other. Does any one know where they can be purchased? I suspect McMaster-Carr has them as they offer a very wide variety of such springs though the question becomes which ones. Does anyone know the appropriate lengths, and inner and out diameters that would be appropriate for use in a Gem? Or even by chance a McMaster-Carr or similar supplier part number?

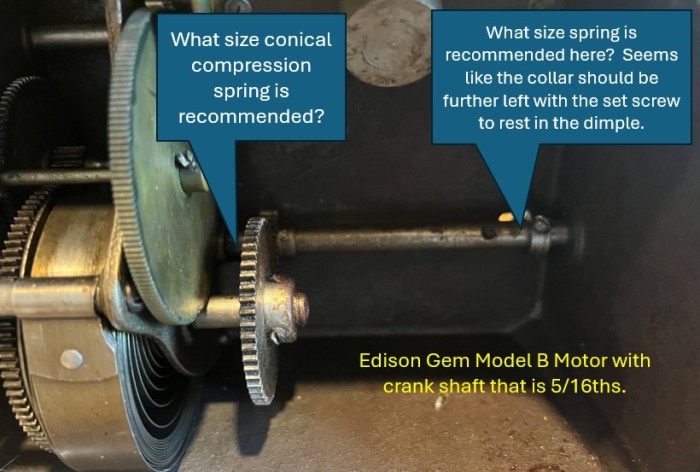

Crank Shaft Springs.jpg
Top
User avatar
Roaring20s
Victor V
Posts: 2787
Joined: Wed Jun 13, 2012 1:55 am
Personal Text: Those who were seen dancing were thought insane by those who could not hear the music. Nietzsche
Location: Tucson, AZ

Re: What Size Springs for Edison Gem Model B Winding Crank?

Post by Roaring20s »

Oops, not what you asked for. :oops:

James.
