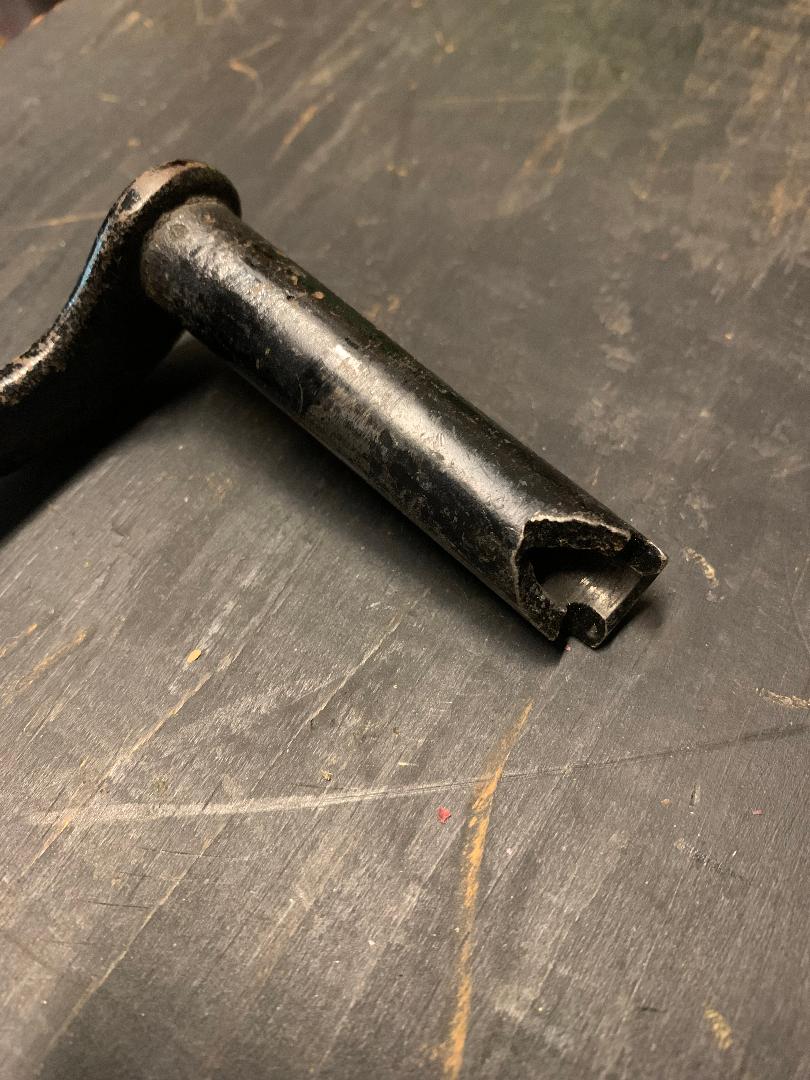

Attached is a picture of an early Edison cast crank with a break / chip out of the slot end. I have a couple like this I've put back over the years and would like to get them repaired. Does anyone know a source who can properly repair the end, or tips on how to repair?
Thanks,
David
Edison Cast Crank Repair
-
drboruff
- Victor I
- Posts: 144
- Joined: Sun Aug 09, 2009 9:43 am
Edison Cast Crank Repair
- Attachments
-
-
Roaring20s
- Victor V
- Posts: 2820
- Joined: Wed Jun 13, 2012 1:55 am
- Personal Text: Those who were seen dancing were thought insane by those who could not hear the music. Nietzsche
- Location: Tucson, AZ
Re: Edison Cast Crank Repair

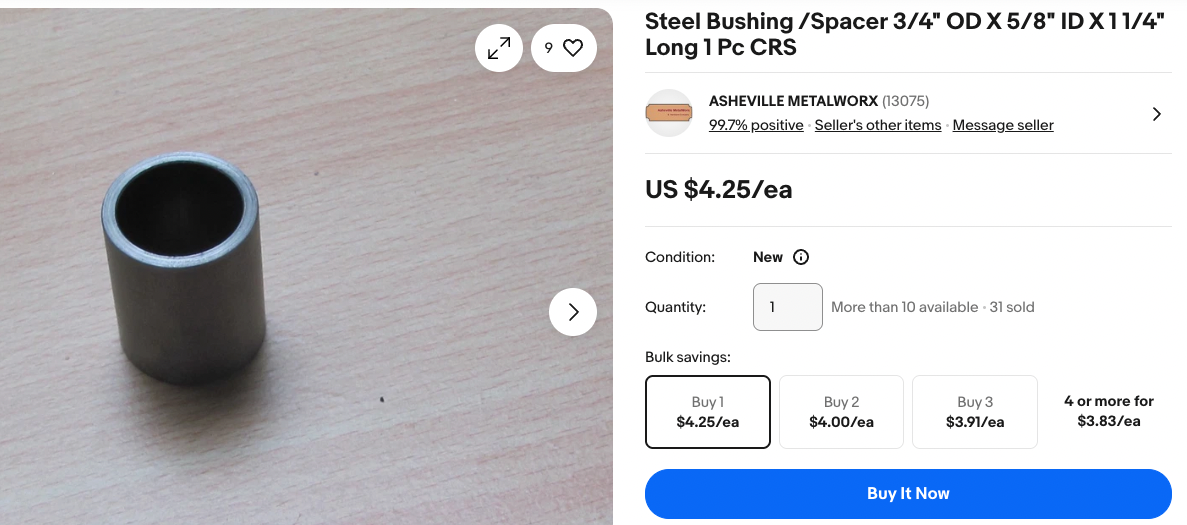

Something like this could be epoxied on and then recut the slots.
James.
James.
-
drboruff
- Victor I
- Posts: 144
- Joined: Sun Aug 09, 2009 9:43 am
Re: Edison Cast Crank Repair
Good suggestion. Thanks James!
-
JerryVan
- Victor Monarch Special
- Posts: 6872
- Joined: Mon Aug 24, 2009 3:08 pm
- Location: Southeast MI
Re: Edison Cast Crank Repair
Is the cross pin long enough to reach and engage with a groove in the added sleeve?
-
drboruff
- Victor I
- Posts: 144
- Joined: Sun Aug 09, 2009 9:43 am
Re: Edison Cast Crank Repair
I'll need to check and confirm. My hope was it would be possible to fill the void with welding for cast iron, then grind down to the original shape and slot. I'm not sure if this can be done, so the sleeve may be the best alternative so long as the cross pin will engage the sleeve.
Thanks,
David
