Edison Triumph shaver
-
BigC
- Victor II
- Posts: 258
- Joined: Sat Apr 24, 2021 2:13 pm
- Location: Blythe California
- Contact:
Edison Triumph shaver

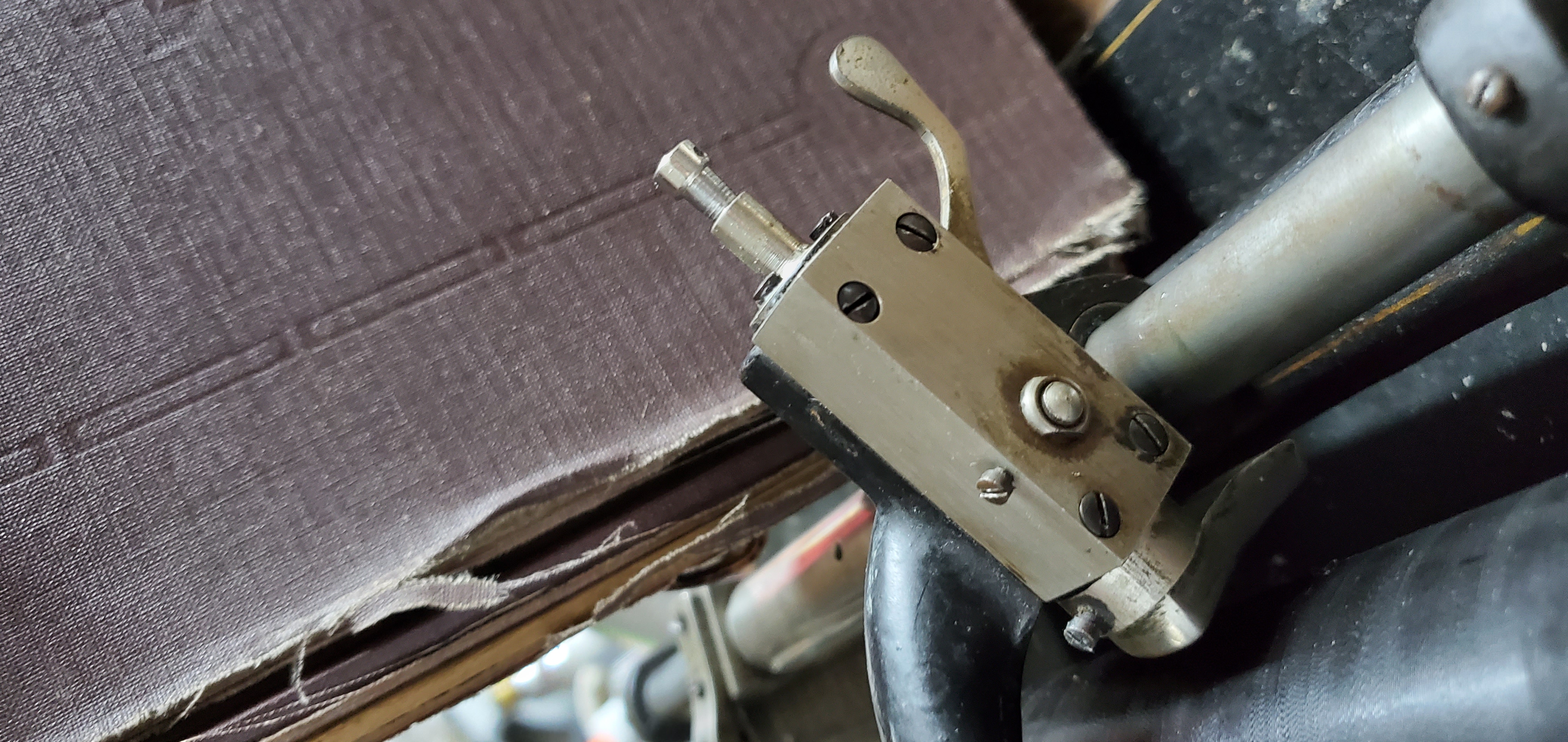

I just got my first Triumph and it has a cylinder shaver. I looked it up on YouTube and it's supposed to lock by pulling the lever down. When I pull it down it does hold it in place but as soon as I release it doesn't lock. I'm I missing something? Is there a way to adjust it so it does lock?
- Attachments
-
-
fourbaers
- Victor I
- Posts: 104
- Joined: Mon Mar 16, 2015 10:07 pm
- Location: St. Louis
Re: Edison Triumph shaver
The lock can be easily adjusted.

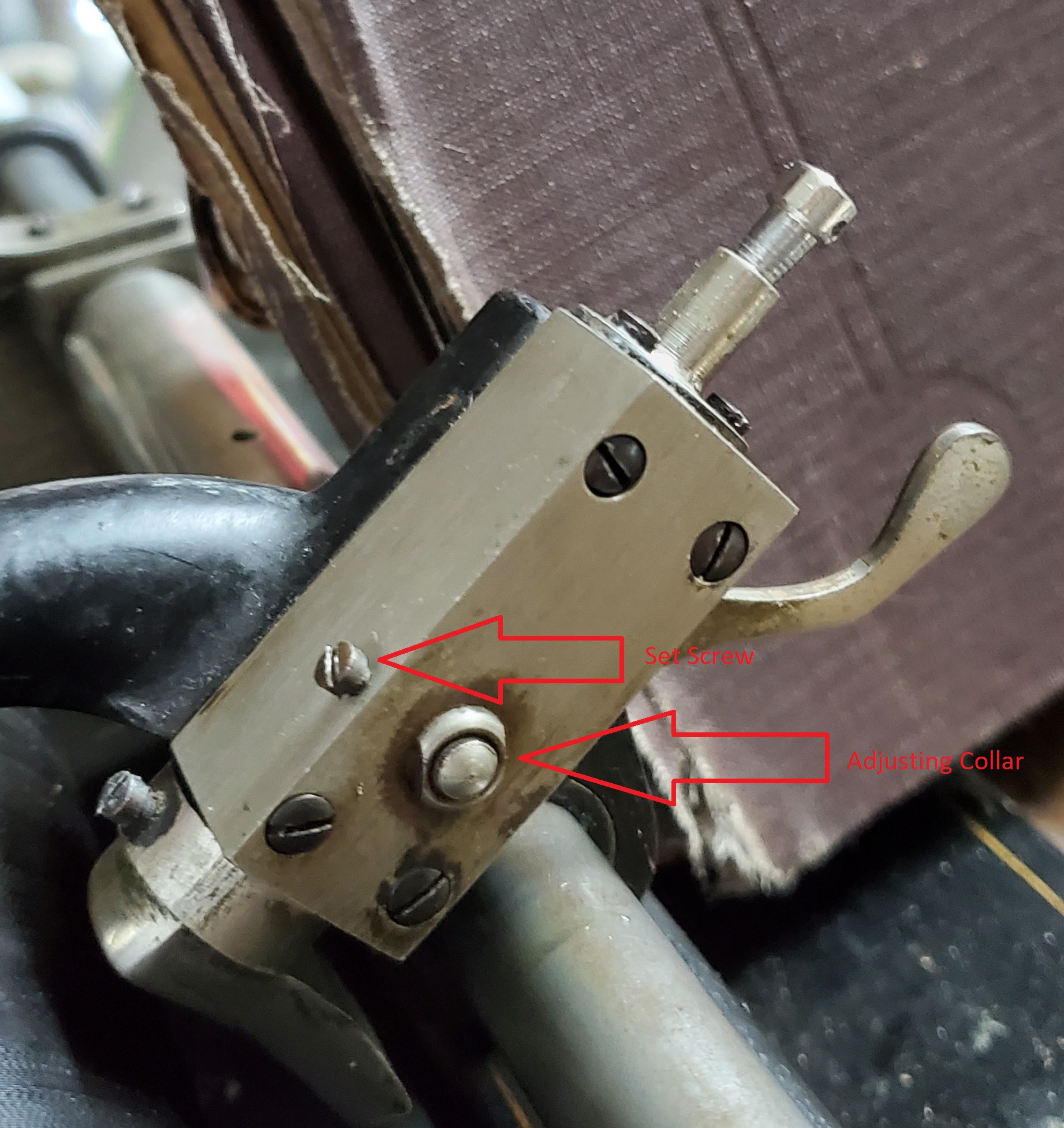

I've copied your picture and added two notes. The upper slotted head screw is a locking screw or set screw that should be loosened a bit to allow adjustments.
Then the round collar with "wrench flats" can be turned clockwise a bit to tighten. When you get it tight enough to hold the lever the set screw can be retightened.
Hope that works.

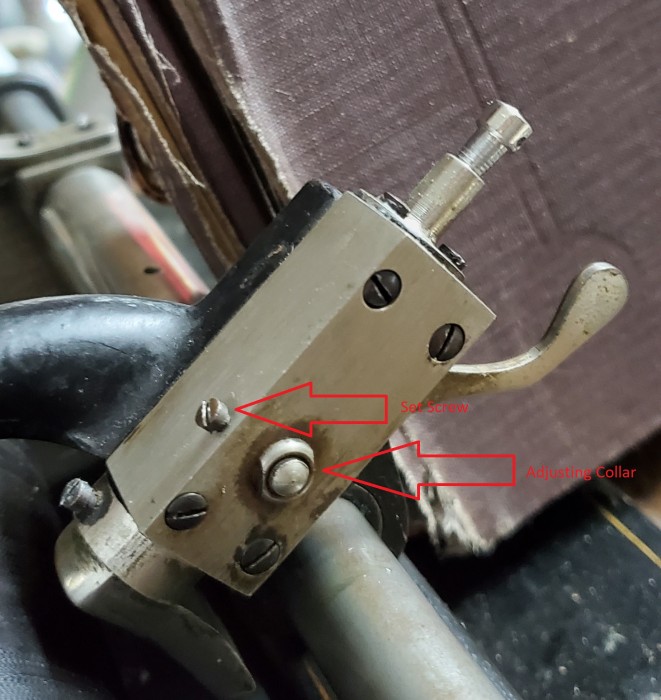

I've copied your picture and added two notes. The upper slotted head screw is a locking screw or set screw that should be loosened a bit to allow adjustments.
Then the round collar with "wrench flats" can be turned clockwise a bit to tighten. When you get it tight enough to hold the lever the set screw can be retightened.
Hope that works.
