EDISON CARRIAGE WHAT DOES IT FIT?
-
tictalk
- Victor II
- Posts: 367
- Joined: Sun Mar 23, 2014 11:10 am
EDISON CARRIAGE WHAT DOES IT FIT?

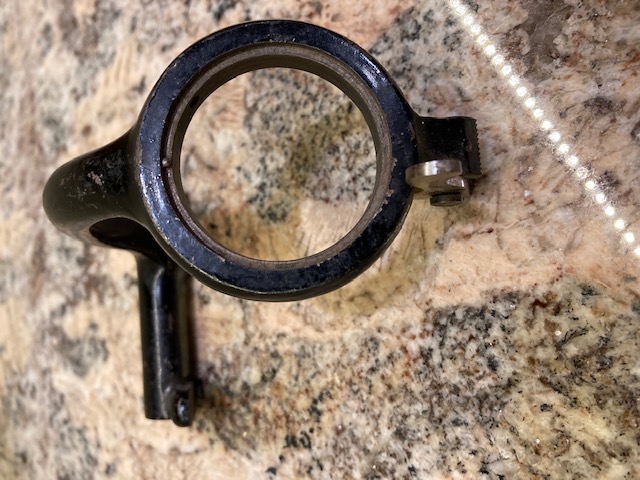

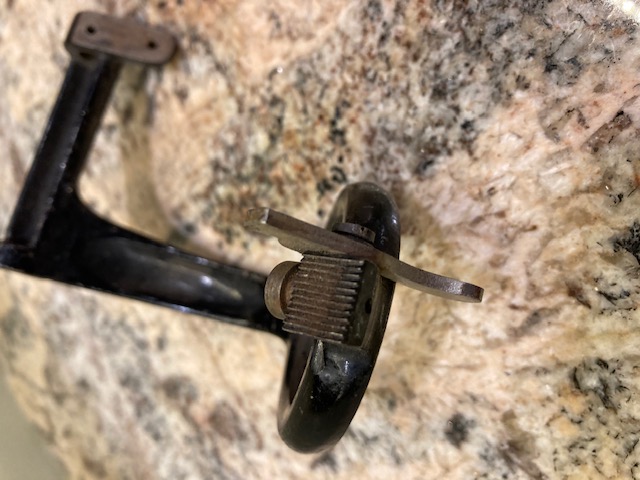

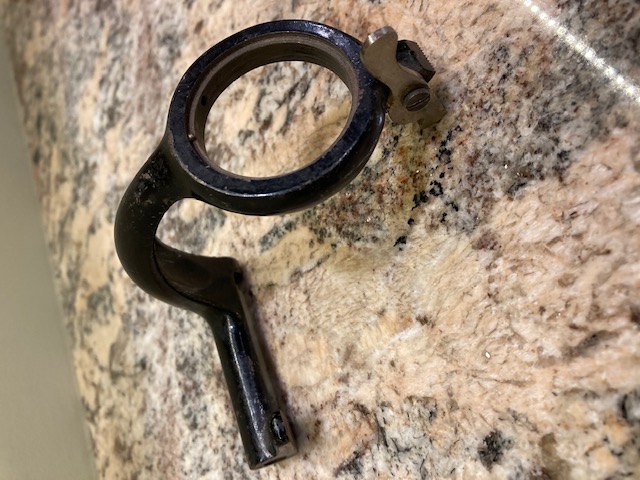

I found this in a box of parts , does anyone know what it goes to ? Notice the threads on the front side of the carriage. Thanks Larry
- Attachments
-
- IMG_7465.jpg (115.13 KiB) Viewed 872 times
-
- IMG_7464.jpg (87.62 KiB) Viewed 872 times
-
- IMG_7463.jpg (111.28 KiB) Viewed 872 times
-
phonogfp
- Victor Monarch Special
- Posts: 8088
- Joined: Wed Jan 07, 2009 5:08 pm
- Personal Text: "If you look for the bad in people expecting to find it, you surely will." - A. Lincoln
- Location: New York's Finger Lakes
Re: EDISON CARRIAGE WHAT DOES IT FIT?
This carriage is for use with an ICS repeater. It appears to be a Gem carriage.
George P.
George P.
-
tictalk
- Victor II
- Posts: 367
- Joined: Sun Mar 23, 2014 11:10 am
Re: EDISON CARRIAGE WHAT DOES IT FIT?
Thankyou George,
-
phonogfp
- Victor Monarch Special
- Posts: 8088
- Joined: Wed Jan 07, 2009 5:08 pm
- Personal Text: "If you look for the bad in people expecting to find it, you surely will." - A. Lincoln
- Location: New York's Finger Lakes
Re: EDISON CARRIAGE WHAT DOES IT FIT?
You bet, Larry.
George P.
George P.
-
Pathe Logical
- Victor II
- Posts: 432
- Joined: Sun Jul 21, 2013 7:50 pm
Re: EDISON CARRIAGE WHAT DOES IT FIT?
Still learning --- I've never seen a Gem with an ICS repeater. Time to hit the books...
-
Mormon S
- Victor III
- Posts: 752
- Joined: Mon May 07, 2018 6:27 pm
- Personal Text: "phono_fluff" on instagram
Re: EDISON CARRIAGE WHAT DOES IT FIT?
I have seen an ICS gem with the large upper pulley, but never one with a repeater. The gem carriages also have the threaded holes in the center for the downward facing half-nut, since the feed screw on the gem is below the carriage rod. Looks to me like a standard C carriage.Pathé Logical wrote: Sun Jul 10, 2022 10:48 pm Still learning --- I've never seen a Gem with an ICS repeater. Time to hit the books...
-
phonogfp
- Victor Monarch Special
- Posts: 8088
- Joined: Wed Jan 07, 2009 5:08 pm
- Personal Text: "If you look for the bad in people expecting to find it, you surely will." - A. Lincoln
- Location: New York's Finger Lakes
Re: EDISON CARRIAGE WHAT DOES IT FIT?
It may indeed be a carriage for a Standard.Mormon S wrote: Mon Jul 11, 2022 12:34 am I have seen an ICS gem with the large upper pulley, but never one with a repeater. The gem carriages also have the threaded holes in the center for the downward facing half-nut, since the feed screw on the gem is below the carriage rod. Looks to me like a standard C carriage.
George P.
-
gsphonos
- Victor II
- Posts: 423
- Joined: Wed Feb 24, 2010 11:33 pm
Re: EDISON CARRIAGE WHAT DOES IT FIT?
That appears to be for a Standard Model C or later. I just found a picture of my C and attached it here. It would also work on a later Standard ICS machine. It can’t be used on an earlier Standard A or B ICS machine.
Mike Sorter
Riverside, CA
Mike Sorter
Riverside, CA
-
gsphonos
- Victor II
- Posts: 423
- Joined: Wed Feb 24, 2010 11:33 pm
Re: EDISON CARRIAGE WHAT DOES IT FIT?

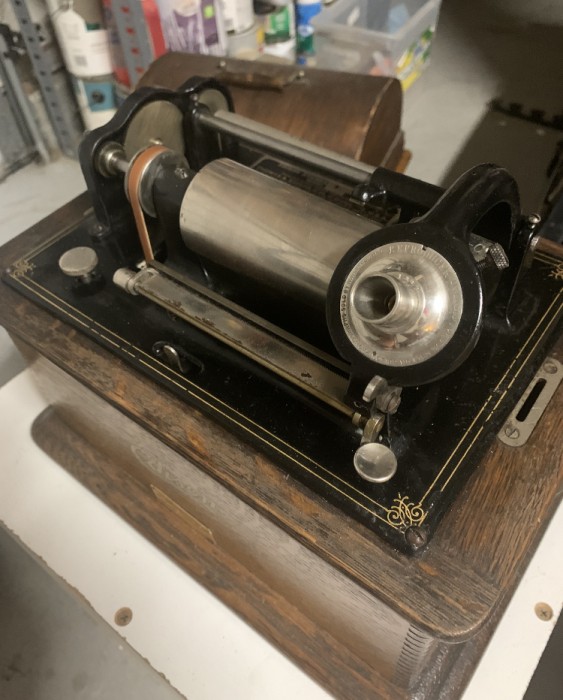

I’ll try again with the picture—didn’t get it posted the first time.
- Attachments
-
- ICS Standard C
-
AllenKoe
- Victor II
- Posts: 210
- Joined: Sat Apr 17, 2010 1:08 pm
Re: EDISON CARRIAGE WHAT DOES IT FIT?
Just in case there is any confusion, the word "repeater" here does not mean that the arm does what most (traditional) "repeaters" do. It doesn't play the cylinder again, from the beginning.
In this case, the arm (when activated) just lifts a bit and moves backwards several seconds' worth, so to conveniently repeat a "foreign phrase." If this was obvious, please forgive. How many seconds, I don't know for sure...
Incidentally, the ICS Company (Scranton, PA) had their molded black wax (language) cylinders on the market before National Phono. (Dec 1901 vs Feb 1902).
Allen
In this case, the arm (when activated) just lifts a bit and moves backwards several seconds' worth, so to conveniently repeat a "foreign phrase." If this was obvious, please forgive. How many seconds, I don't know for sure...
Incidentally, the ICS Company (Scranton, PA) had their molded black wax (language) cylinders on the market before National Phono. (Dec 1901 vs Feb 1902).
Allen
