Wanted: Large bottom door hinges for VE-8-35x

[Ben the phono man]

Hello! I recently picked up a nice condition VE-8-35x (only missing three albums) and both of the bottom hinges are broken. The "travel arm" for lack of a better term is the piece that is broken. I need a right and a left side hinge if anyone has one.

Thanks, Ben

[broso252]

I'm not sure if these are the right ones but there are these on eBay right now
https://www.ebay.com/itm/275637005937

[Ben the phono man]

Those are the small size hinges, the ones on the 8-35 are much larger.

Thanks, Ben

[MarkELynch]

Ben,

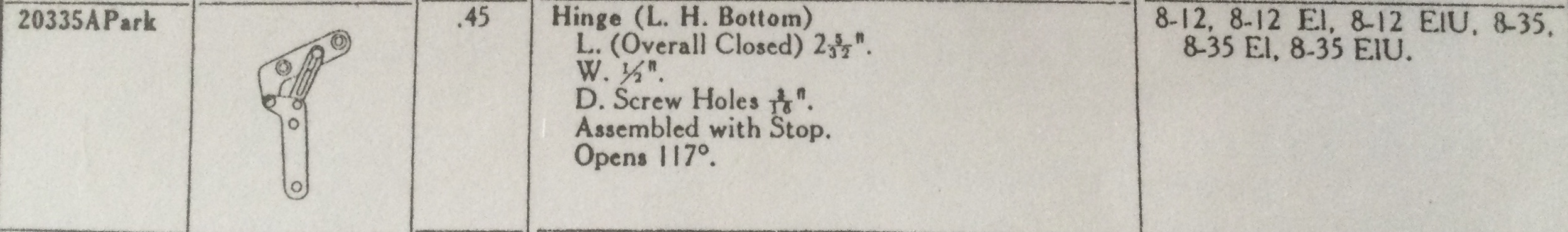

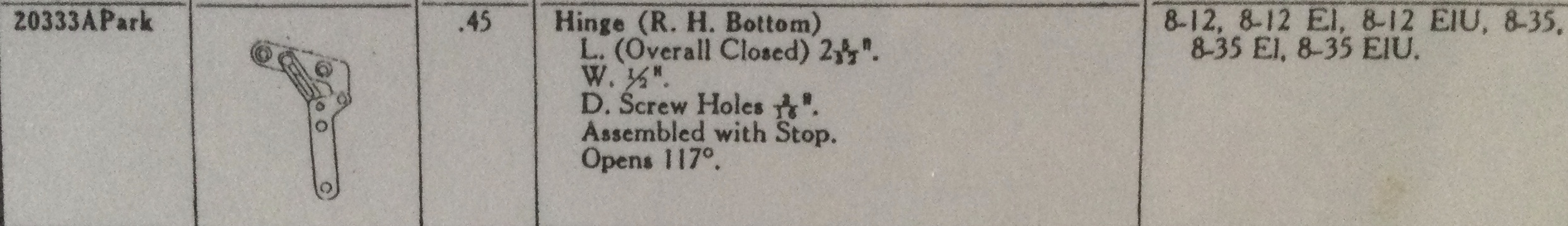

Unfortunately those hinge stops are often broken. Here are the dimensions of the bottom door hinges, they may help us determine if orphans in our parts drawers are what you need. They were used only on the 8-35 and 8-12.

Mark

[Inigo]

HMV used similar hinges in the reentrant machines, but without the door stops (my 194 doesn't have door stops).

[Ben the phono man]

Ben,

Unfortunately those hinge stops are often broken. Here are the dimensions of the bottom door hinges, they may help us determine if orphans in our parts drawers are what you need. They were used only on the 8-35 and 8-12.

Mark


Thanks a lot Mark! this is extremely helpful!! I hope other people see this.

Thanks, Ben
