An Edison Home Oddity
-
JerryVan
- Victor Monarch Special
- Posts: 6836
- Joined: Mon Aug 24, 2009 3:08 pm
- Location: Southeast MI
An Edison Home Oddity

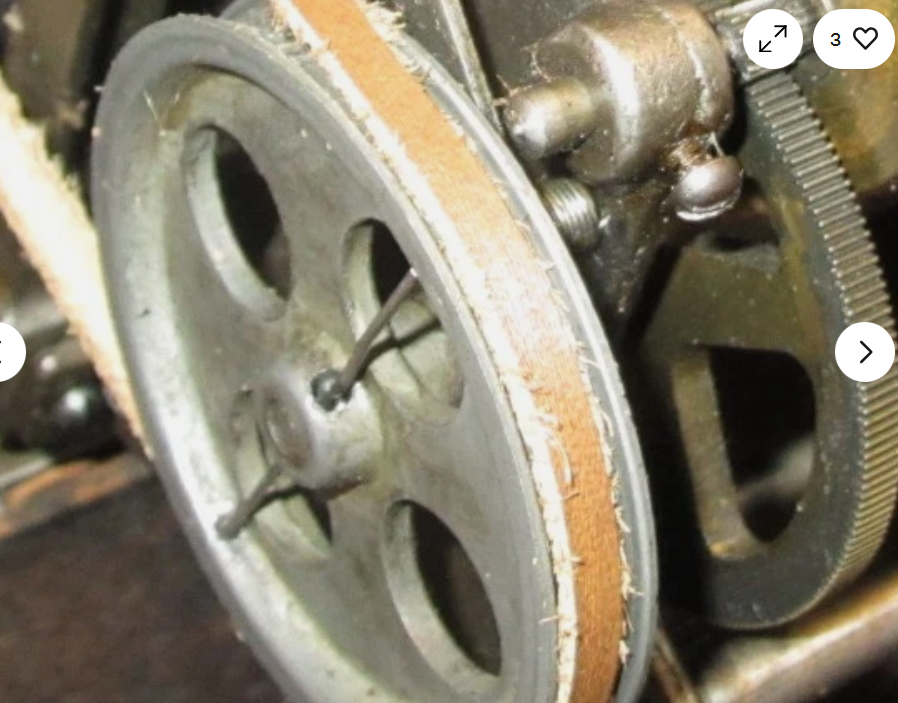

I spotted this on an Edison Home, currently on eBay. The drive pulley setscrew has been removed and a spring wire added, similar to what you would see in an Edison Opera. Has anyone seen the use of a "cushion spring" such as this on a Home before? Could it have been a short lived factory item? Would it have even been beneficial?

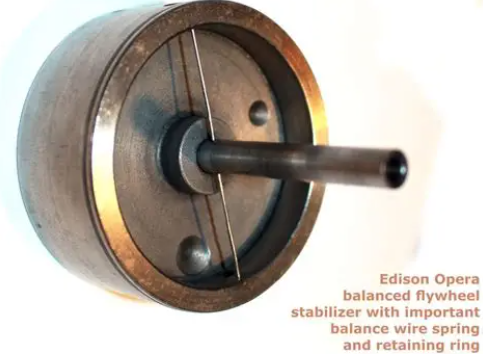

The Opera version...
The Opera version...
-
phonogfp
- Victor Monarch Special
- Posts: 8288
- Joined: Wed Jan 07, 2009 5:08 pm
- Personal Text: "If you look for the bad in people expecting to find it, you surely will." - A. Lincoln
- Location: New York's Finger Lakes
Re: An Edison Home Oddity
I'd bet that the pulley swelled (as these often do) and the set screw would no longer bite the arbor. In order to secure the pulley, someone drilled a hole through both arbor and pulley and inserted a finishing nail.
George P.
George P.
-
tomb
- Victor IV
- Posts: 1427
- Joined: Sat Oct 24, 2015 10:46 pm
- Location: riverside calif
Re: An Edison Home Oddity
It does look like a nail with the head on the bottom of the pully. I would think that would be cheaper to use on the pully than the set screw but you could not adjust or align the belt to the top pully.
