Columbia AK disc graphophone- help

[DanP58]

Good Evening all,
I bought a Columbia AK disc graphophone parts/project machine at the Wayne show today . I have the cabinet , turntable, stop / speed control , complete motor and traveling arm ( might be a reproduction ) all are in good shape , need a good cleaning . I m looking for a crank , front mount horn support , horn and reproducer, looking for parts or a source for parts The gentleman I bought it from might be able to help with some parts I’m going to check with him also.
Thanks
Dan

[JerryVan]

Dan,

I believe there were different versions of the AK. Posting pictures of what you've got might be helpful.

[DanP58]

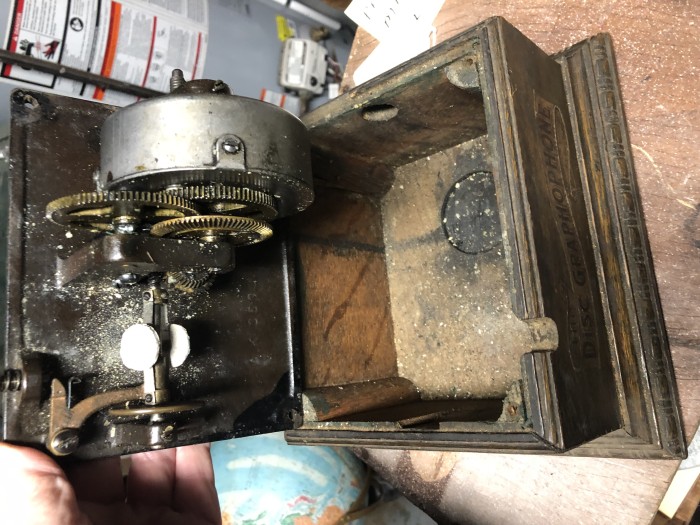

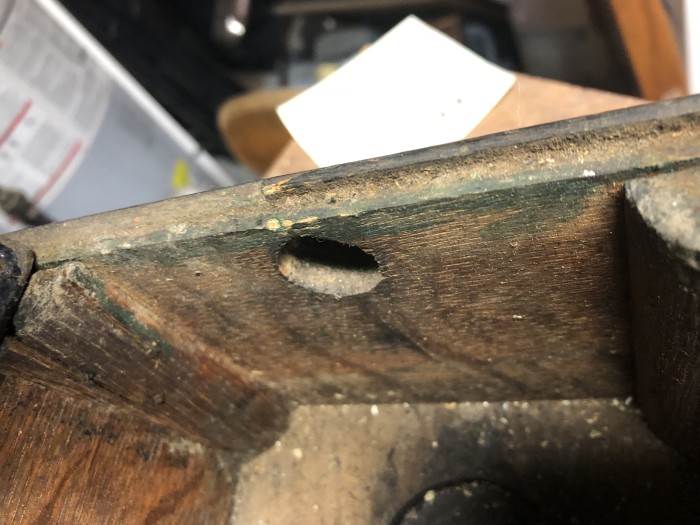

Good morning, I think it is the first version , by what I read/ saw in the Columbia companion book , I can see where the green dye drippings on inside case, the only #’s I see are on the under side of top plate “AK. 3503. 6”
Dan

[Phono-Phan]

It would be best to post this in the "Yankee Trader" section.

[Jerry B.]

PM sent.

[DanP58]

Found all parts except crank handle, would also like to find embossed traveling arm
Dan

[phonospud]

The travelling arms for these are usually wood but I have seen cast aluminum ones. If you are okay with a reproduction, Justin Shaub or JAS Antiques may have one in stock. They are high quality replicas. He may have other parts you need.

[DanP58]

Thanks for the tip

[JohnM]

‘Graphophone’ is a proper noun and should be capitalized.

[DanP58]

thanks for the help john
dan
