Pathé No.0

[Dulcetto]

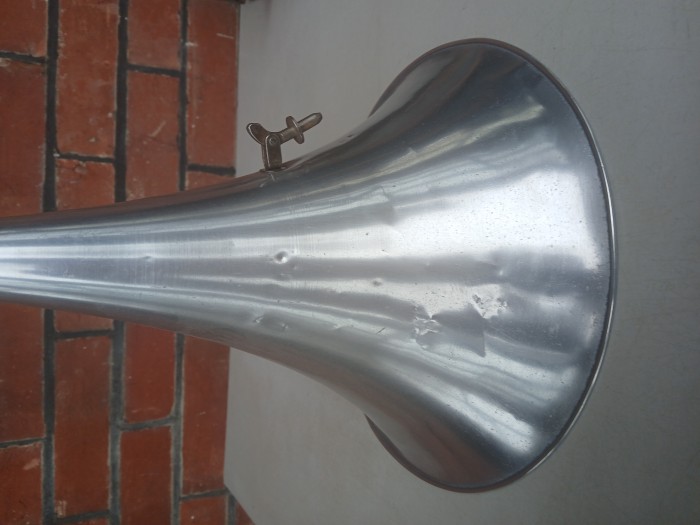

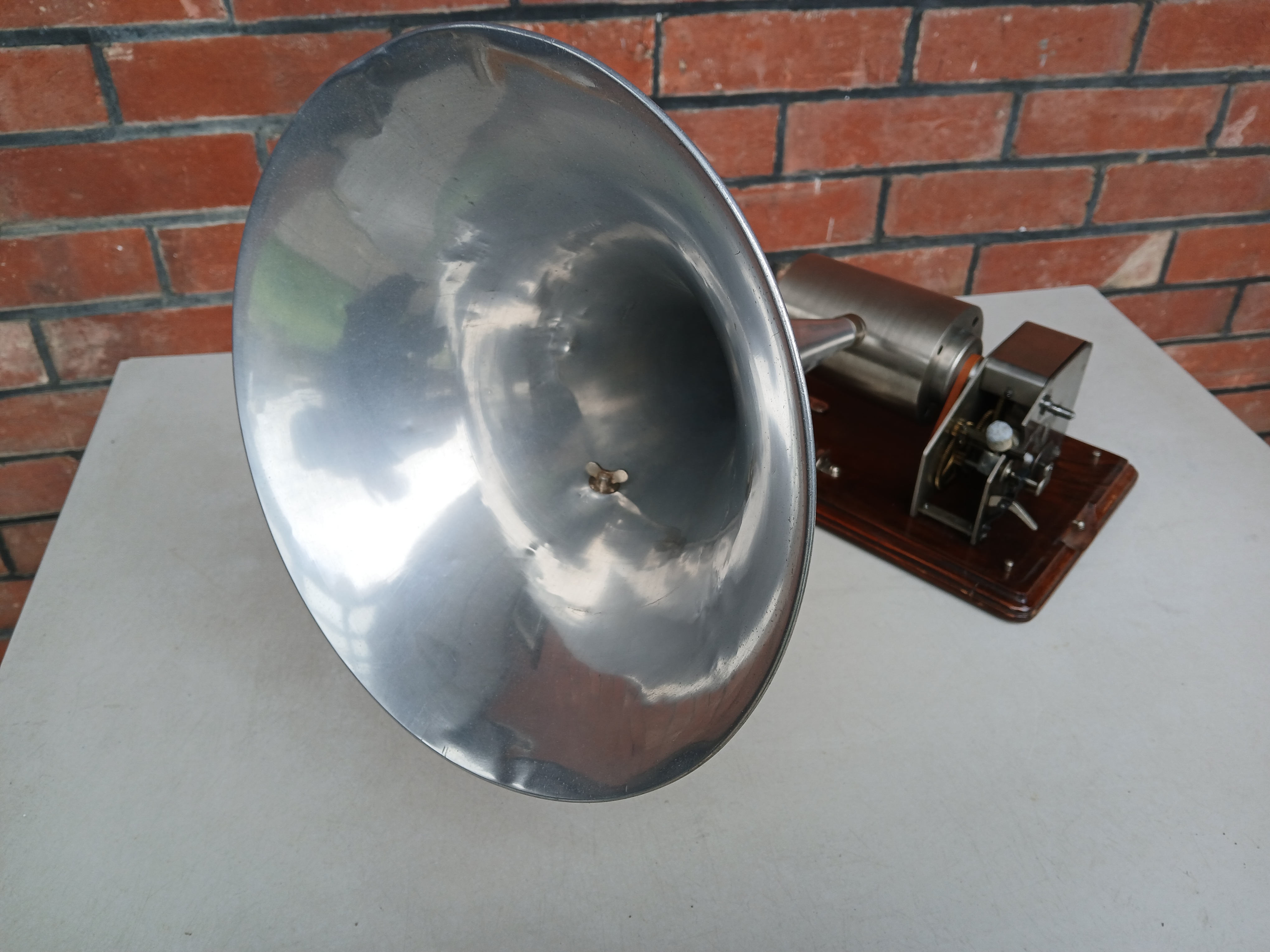

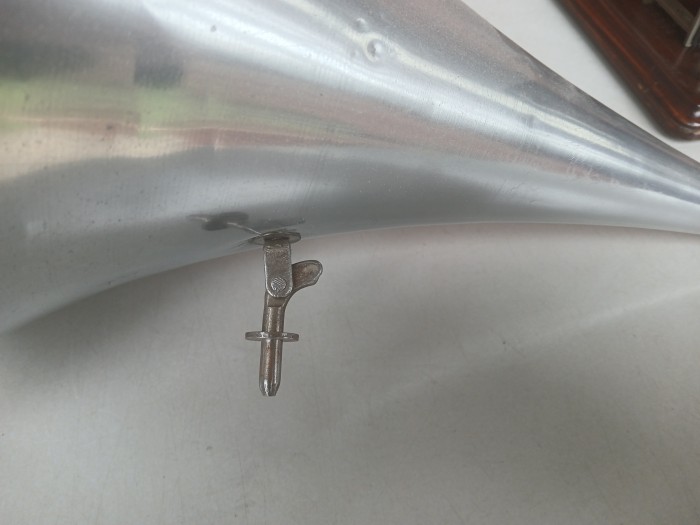

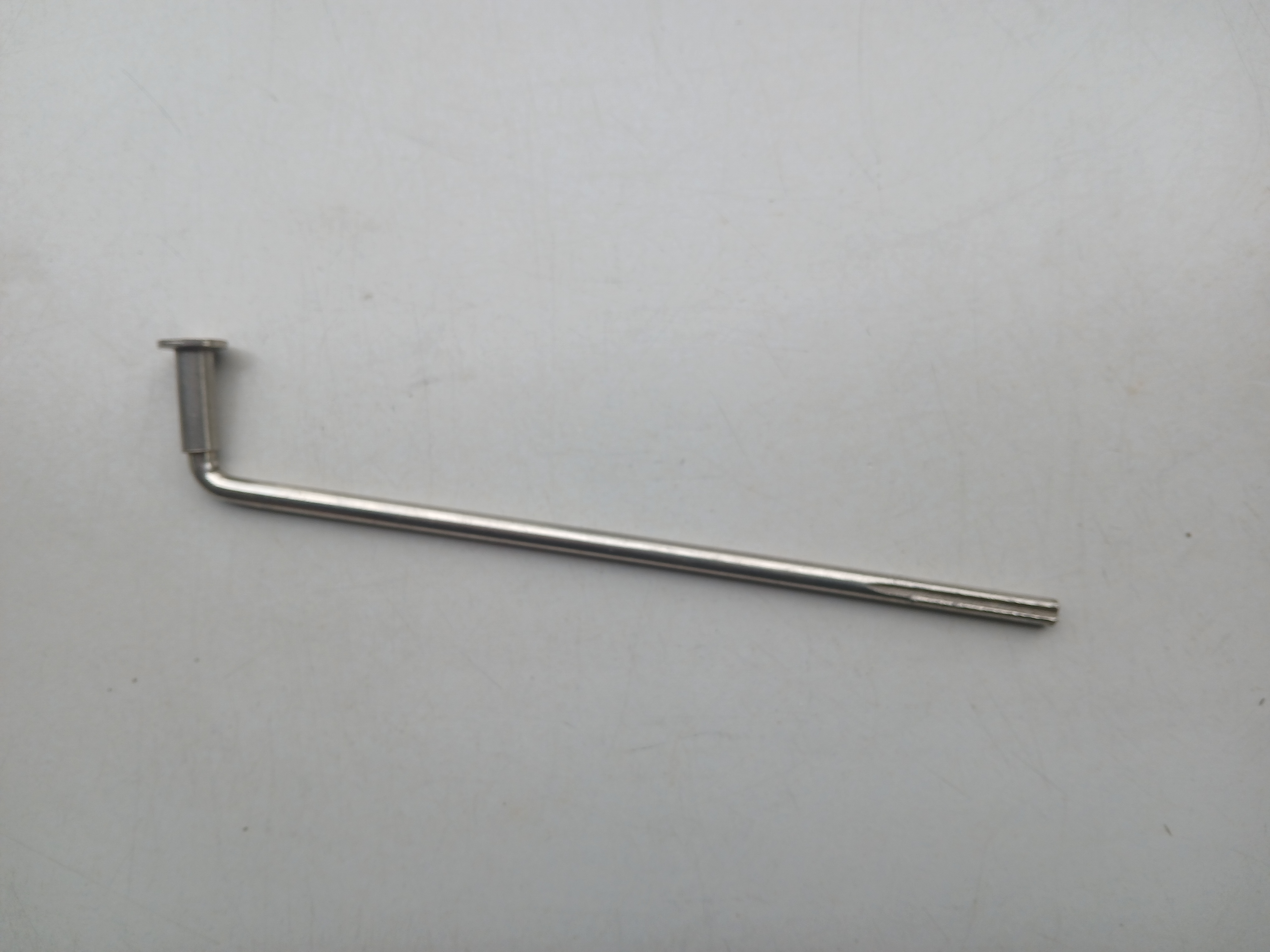

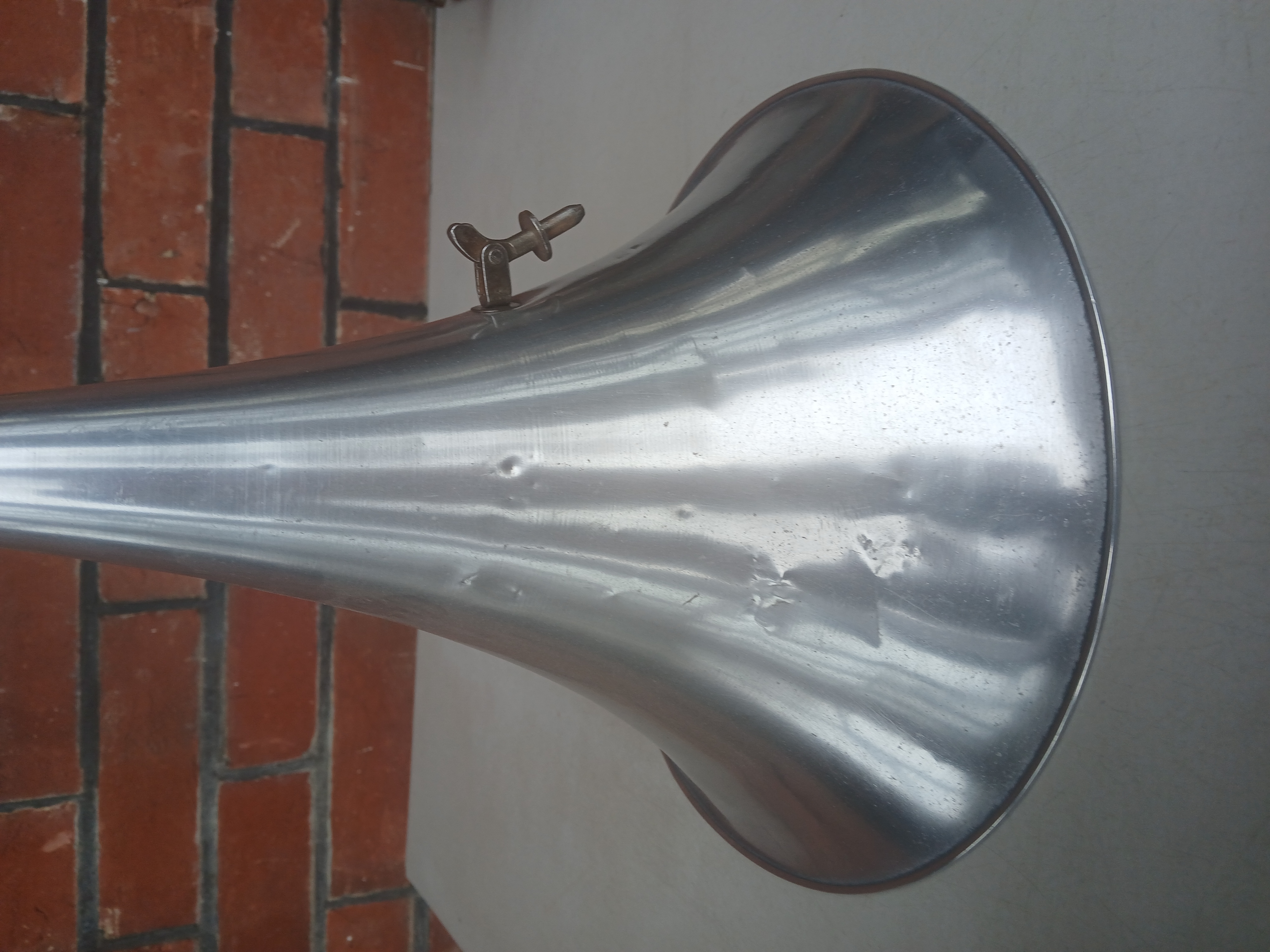

Hi, the horn measures approx. 12 inches long by 10 inches across the bell . The picture posted by drh pretty much shows the setup. You will notice a short "arm" on which the horn rests when not playing a record. My own example does not have that arm and relies solely on the horn fitting to support the horn which it seems to do ok , so maybe there were two patterns of the horn fitting --' my example does not look as if it has been altered in any way. Incidentally I may have a spare horn support rod --' bear with me. Regards Dulcetto

[DanP58]

Thank you , I’d be interested in the arm if you have one. I check out the EBay France to see what horns they have.
Dan

[phonodesbois]

More pics

[Sidewinder]

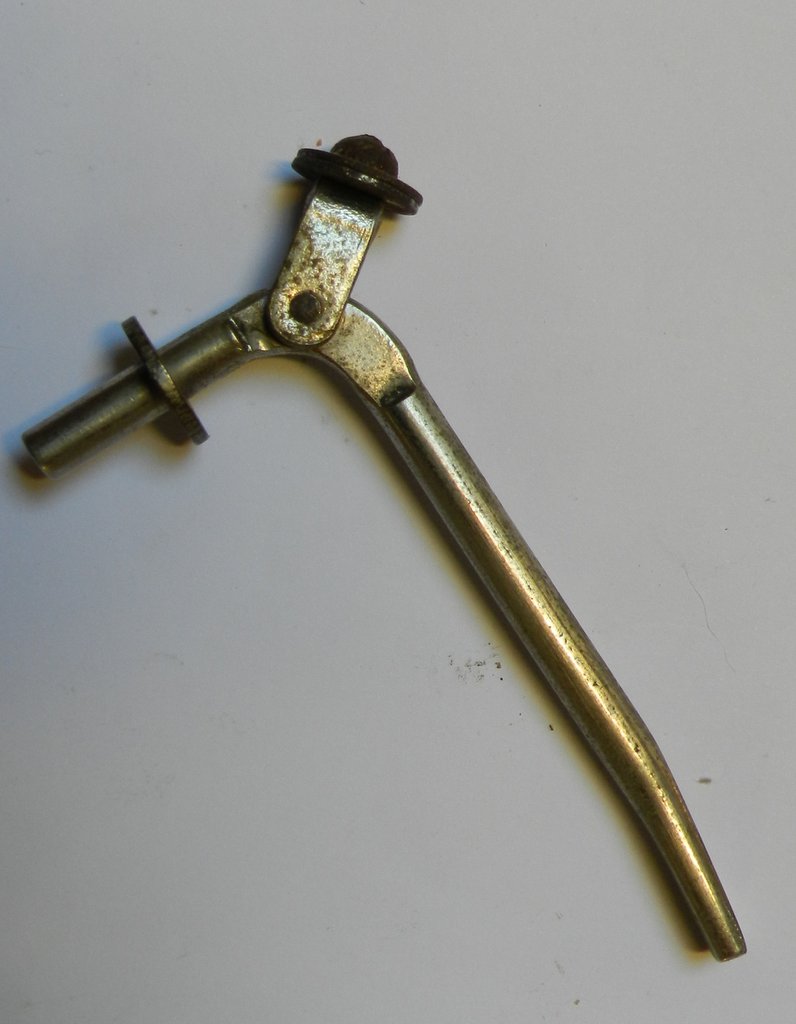

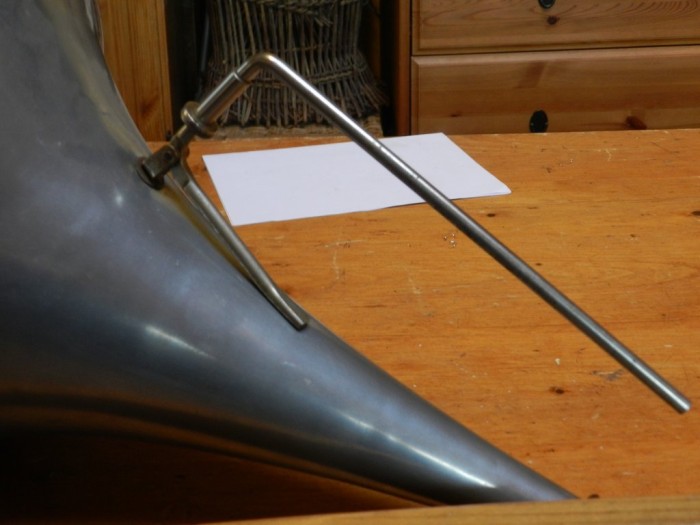

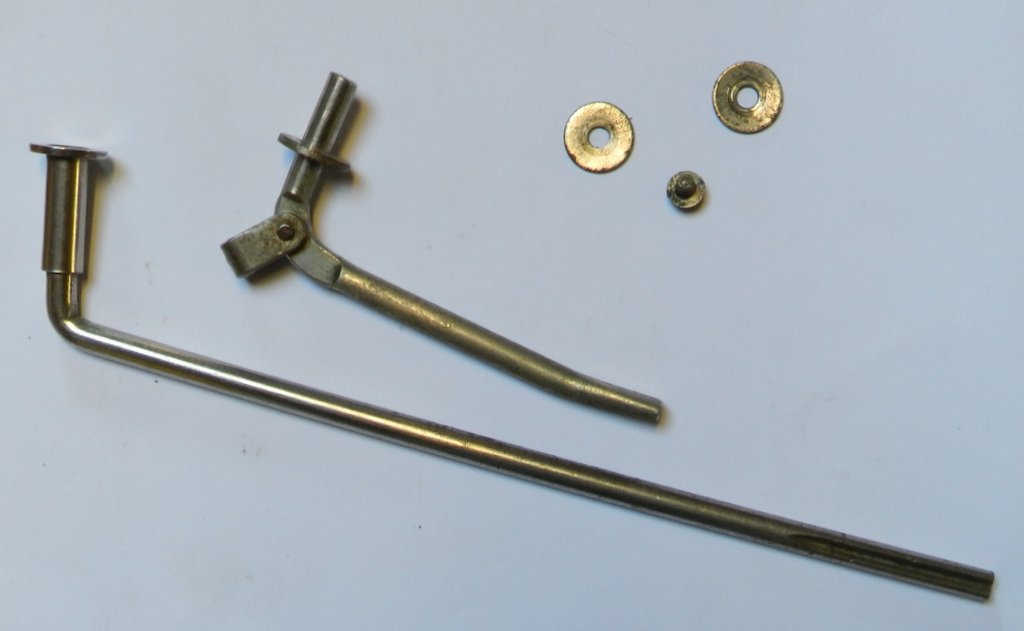

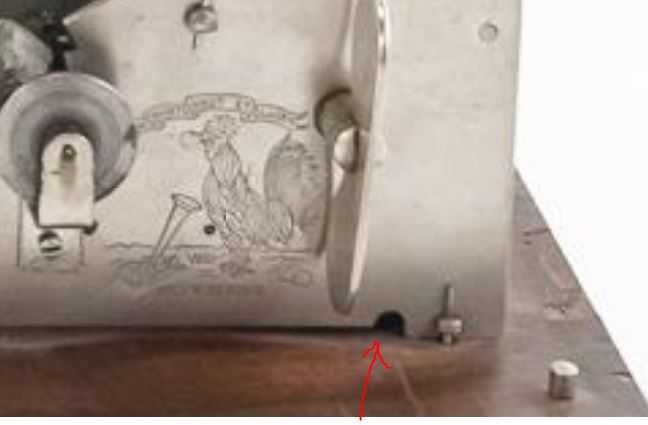

The horn support arms are often lost as people do not know how to correctly store them. Pathé had a system with their phonographs.

[DanP58]

I was able to find all the parts to complete this machine. Thank you all for the help and info,
Dan

[JerryVan]

Nice work! I suspect that in the pre-internet days, it would have been a real task to complete a machine like this. In fact, I know it would have been difficult, as my collecting predates the internet era.

Congratulations on completing very nice machine!

[cosmo666]

Beautiful machine. Where did you source the rubber reproducer extensions? Been looking for one for quite some time.

[DanP58]

https://www.phonorama.fr/kp02.html
I bought the parts from Julien at this site that was one of them.
Dan

[cosmo666]

Thanks for the info.
